Feature

OEM

Small size, stainless steel single piece integrated Constructure

No O-rings, welds or silicone oil

Low cost

Adapting to harsh environment

Wide pressure range

Wide operating temperature range

Strong overload capacity

Description

RC1104 series pressure sensor adopts 17-4PH stainless steel single integral structure processing, has good performance of overload, pressure interface no welds, no oil or other organic matter, sealed performance is good. This sensor is firmly sintered on the pressure seat by glass micro-melt technology, which greatly improves the high temperature resistance and anti vibration performance of the sensor. In the standard production purification process, all the parameters are strictly controlled, the whole product has undergone the strict test and age screening of the components, semi-finished products and finished products, and the performance is stable and reliable.

RC1104 pressure sensor is widely used in beverage distribution equipment, servo pressure circulation application, liquid distribution device, chemical industry, fire rescue cylinder and other fields.

Standard Ranges

Note: We are the manufacturer, special needs, please contact us.

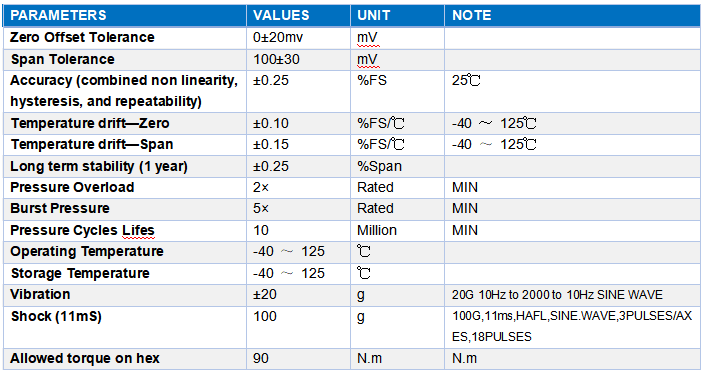

Performance Specifications

Supply Voltage: 5Vdc (output mV)

Ambient Temperature: 25℃

Note: We are the manufacturer, special needs, please contact us.

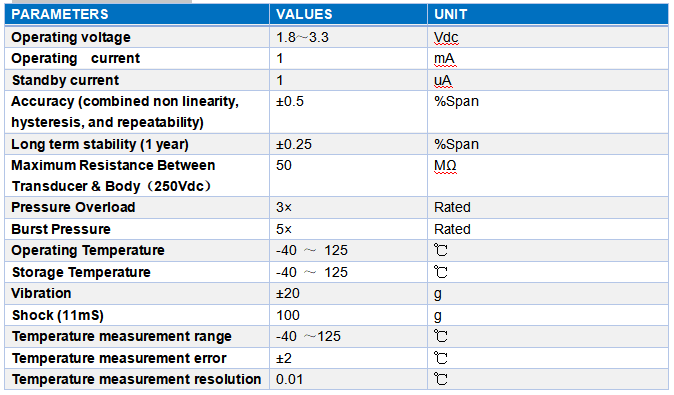

Supply Voltage: 3.3Vdc (output I2C)

Ambient Temperature: 25℃

Note: We are the manufacturer, special needs, please contact us.

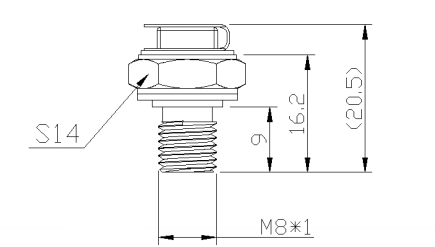

Dimensions

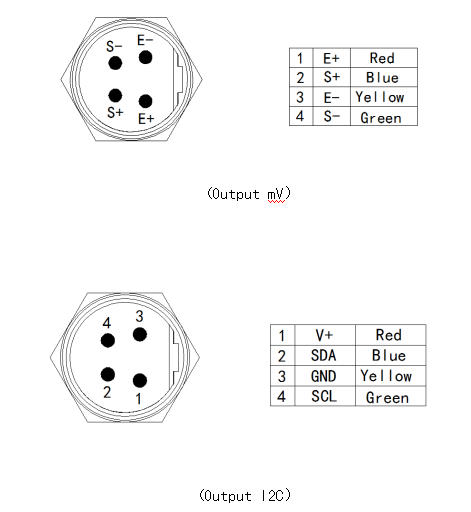

Output Options

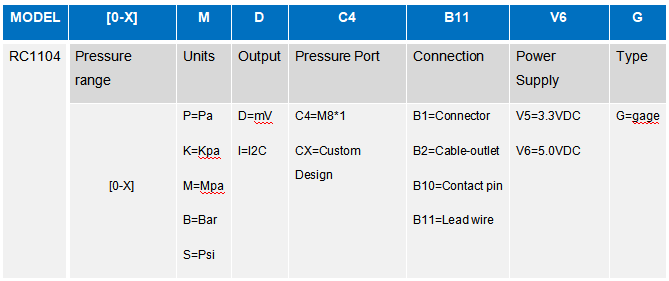

Ordering Information

The selection code of the example is as follows:

Example: RC1104-[0-40]MDC4B11V6G ( RC1104 Miniature pressure sensor, Range: 0-40MPa, Output: mV, Pressure Port: M8*1, Connection: Lead wire, Power Supply: 5.0Vdc, gauge)

Note: We are the manufacturer, special needs, please contact us.
