Features

The core adopting glass micro-melt technology, integrated structure, no leakage

Pressure sensitive elements Φ19mm

Wide pressure range

Adapt to harsh environment

Wide measuring range coverage

Strong overload capacity

Wide operating temperature range

Description

There are no welds, silicone oil or other organic matters in the pressure port of this product, and the sealing performance is good. The sensitive element of sensor is firmly sintered on the pressure seat with glass melting technology, which greatly improves the sensor’s performance in high temperature resistance, vibration resistance and more, ensuring the long-term stability and reliability of sensor in harsh industrial environments. It is characterized by long life span, up to 1000 times’ pressure cycle count and other more.

The structural dimensions of RC207 series pressure sensor could replace diffusion silicon cores, so these products are widely used for pressure measurement in industrial process control, pumps and compressors, hydraulic/pneumatic systems, automatic inspection systems, energy and water treatment systems, agricultural equipment, refrigeration systems, construction machinery, hydrology and other fields, as well as for measuring the pressure of fluids with slight impurities in harsh environments.

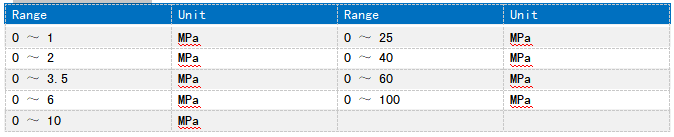

Range Option

Note: For special requirement, please contact us.

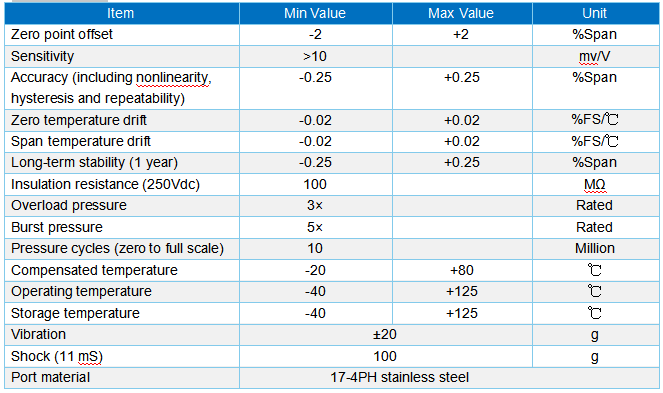

Performance Parameters

Power Supply: 5Vdc

Ambient: 25℃

Note: For special requirement, please contact us.

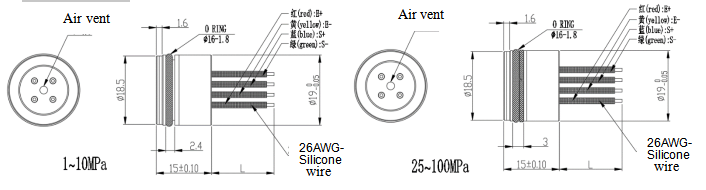

Dimensions

Assembly Dimensions Recommended

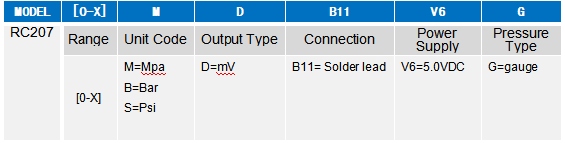

Ordering Information

The selection code of the example is as following:

Example: RC207-[0-10]M-D-B11-V6-G(RC207 pressure sensor, range: 0-10MPa, output: mV, connection: solder lead, power: 5V, gauge)

Note:

1. Please note that the tested medium shall be compatible with the part contacting the product and medium, while ordering.

2. For special requirements, please consult with our company and indicate in the order.
