Features

OEM

Stainless steel single piece integrated structure

No O-rings, welds or silicon oil

Wide pressure range

Adapt to harsh environment

High reliability and stability

Wide range coverage

Strong verload capacity

Wide operating temperature range

Description

RC200 standard micro-melt pressure sensor is processed by 17-4PH stainless steel single piece integrated structure, with good overload performance. There are no welds, silicone oil or other organic matters in the pressure port, so the sealing performance is good. The sensitive element of sensor is firmly sintered on the pressure seat with glass melting technology, which greatly improves the sensor’s performance in high temperature resistance, vibration resistance and more, ensuring the long-term stability, reliability and durability of sensor in harsh industrial environments.

The RC200 standard micro-melt pressure sensor is widely used for pressure measurement of industrial process control, pumps and compressors, hydraulic/pneumatic system, automatic test system, energy and water treatment systems, agricultural machinery equipment, refrigeration system, engineering machinery, hydrology, etc.

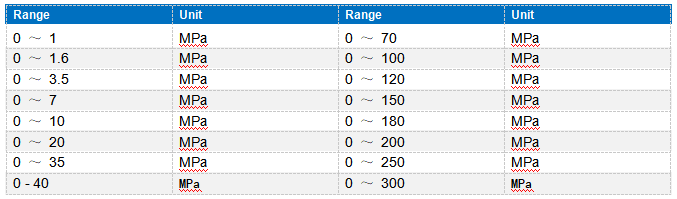

Standard Ranges

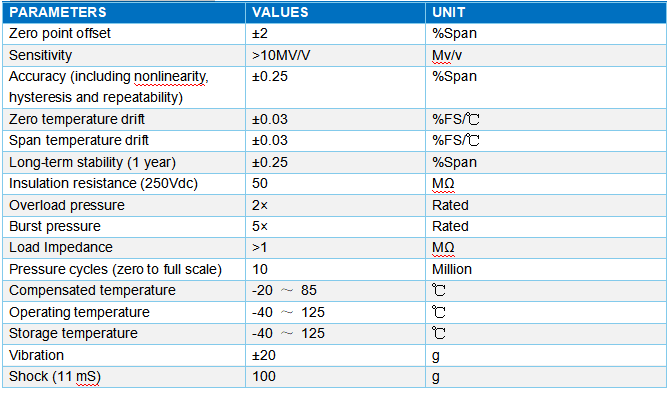

Performance Parameters

Power Supply: 5Vdc

Ambient Temperature: 25℃

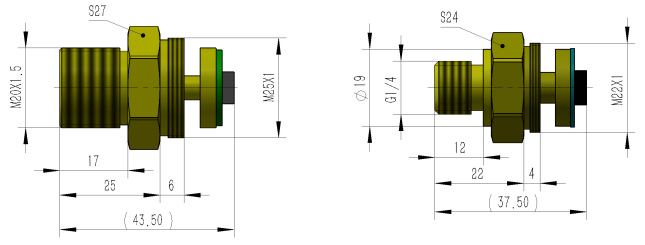

Dimensions

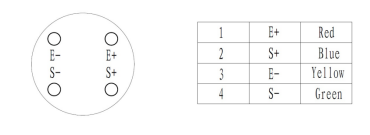

Connection Type and Output

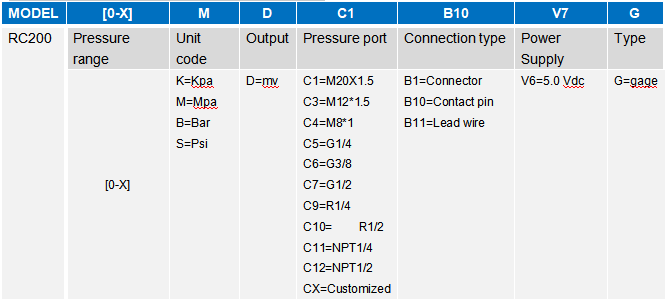

Ordering Information

The selection code of the example is as following:

Example: RC200-[0-40]MDC1B11V6G (RC200 Standard Micro-melt Pressure Sensor, Range: 0-40 MPa, Output: mv, Pressure Port: M20*1.5, Connection: Lead wire, Power Supply: 5.0 Vdc, gage）

Note: We are the manufacturer, if any special needs, please contact us.
