Features

Whole stainless steel structure design, small size, light weight,easy to install

Laser welding, fully sealed structure, housing protection grade IP65

316L stainless steel isolation diaphragm

Adapt to harsh environment

Advanced anti-interference and anti-surge circuit protection

Excellent anti-shock, anti-overload, anti-vibration and corrosion resistance

It can be adjusted and displayed on site

Description

The sensitive element of RC6401 diffused silicon differential pressure transmitter is a solid-state piezoresistive sensitive chip filled with silicone oil between the chip and two corrugated diaphragms. The measured differential pressure acts on the corrugated diaphragms at both ends, and the differential pressure is transmitted to the sensitive chip through silicone oil. The sensitive chip is connected to the special amplifying circuit through a wire. This product realizes the conversion of differential pressure and electrical signal with the piezoresistive effect of semiconductor silicon material. Since there is a good linear relationship between the signal output from the Wheatstone bridge on the sensitive chip and the differential pressure, so the accurate measurement of the measured differential pressure can be realized.

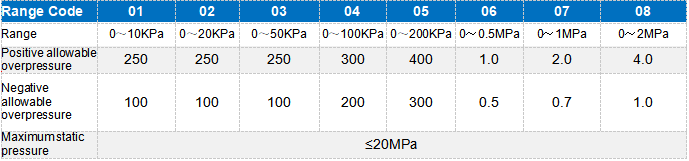

Range Option

Note: For special requirement, please contact us.

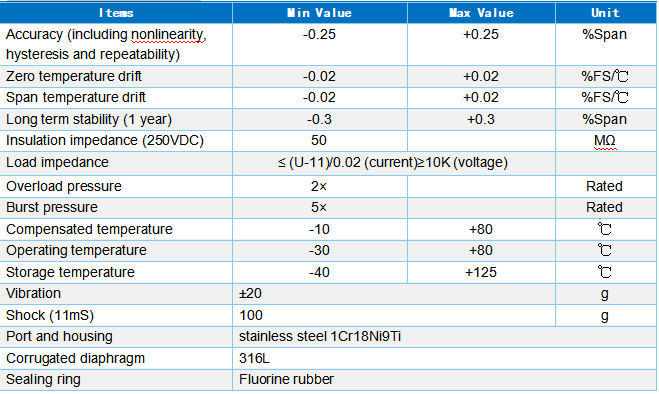

Performance Parameters

Power Supply: 12～30VDC

Reference Temperature: 25℃

Note: For special requirement, please contact us.

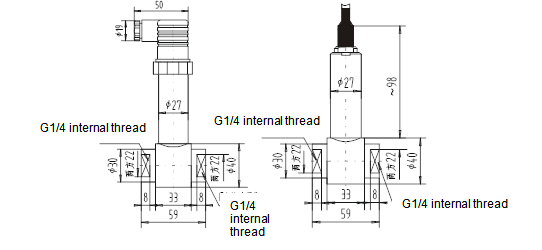

Dimensions

Note: For special requirement, please contact us.

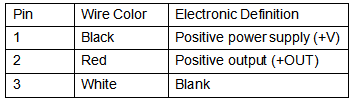

Connection Definition and Output Option

Note: For special requirement, please contact us.

Ordering Information

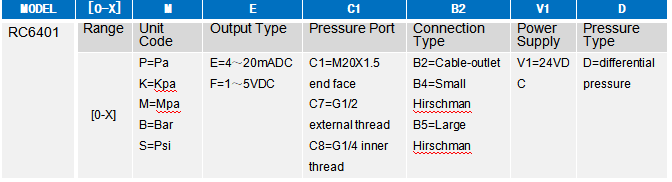

The selection code of the example is as follows:

Example: RC6401-[0-1]M-E-C1-B2-V1-D (RC6401 Diffused Silicon Differential Pressure Transmitters, range: 0-1MPa, output: 4～20mADC, pressure port: M20*1.5 end face, connection: cable-outlet, power supply: 24V, differential pressure)

Note:

1. Please note that the tested medium shall be compatible with the part contacting the product and medium, while ordering.

2. For special requirements, please consult with our company and indicate in the order.
