Features

The electronic housing is made of aluminum alloy, housing protection level IP65

With reverse polarity protection, instantaneous overcurrent and overvoltage protection

It can be equipped with LED and LCD display tables

High reliability and stability

Overvoltage and overcurrent protection, strong adaptability to environment

Compact structure and convenient installation

Advanced anti-interference and anti-surge circuit protection

Excellent shock, anti-overload, anti-vibration and corrosion resistance

Description

RC6203 series pressure transmitter is an industrial pressure transmitter promoted by our company, with high performance and low cost. This series of products adopts special structure design and customized amplifier circuit, characterized by its superior performance, small volume, long life span and cost-effective performance. Application: industrial automation control; hydroelectric, metallurgical and chemical industries.

RC6203 series pressure transmitter adopts aluminum alloy electronic housing, ensuring the use of the transmitter in harsh industrial environments, the requirements of rainproof, lightning protection, anti-corrosion and explosion-proof must be considered for transmitter. In the standard purification process, all the parameters are strictly controlled, the whole product has undergone strict testing and aging screening of components, semi-finished products and finished products, so the performance is stable and reliable.

Standard Ranges

Note: We are the manufacturer, for any special needs, please contact us

Performance Parameters

Supply Voltage: 5～30Vdc

Ambient Temperature: 25℃

Note: We are the manufacturer, for any special needs, please contact us.

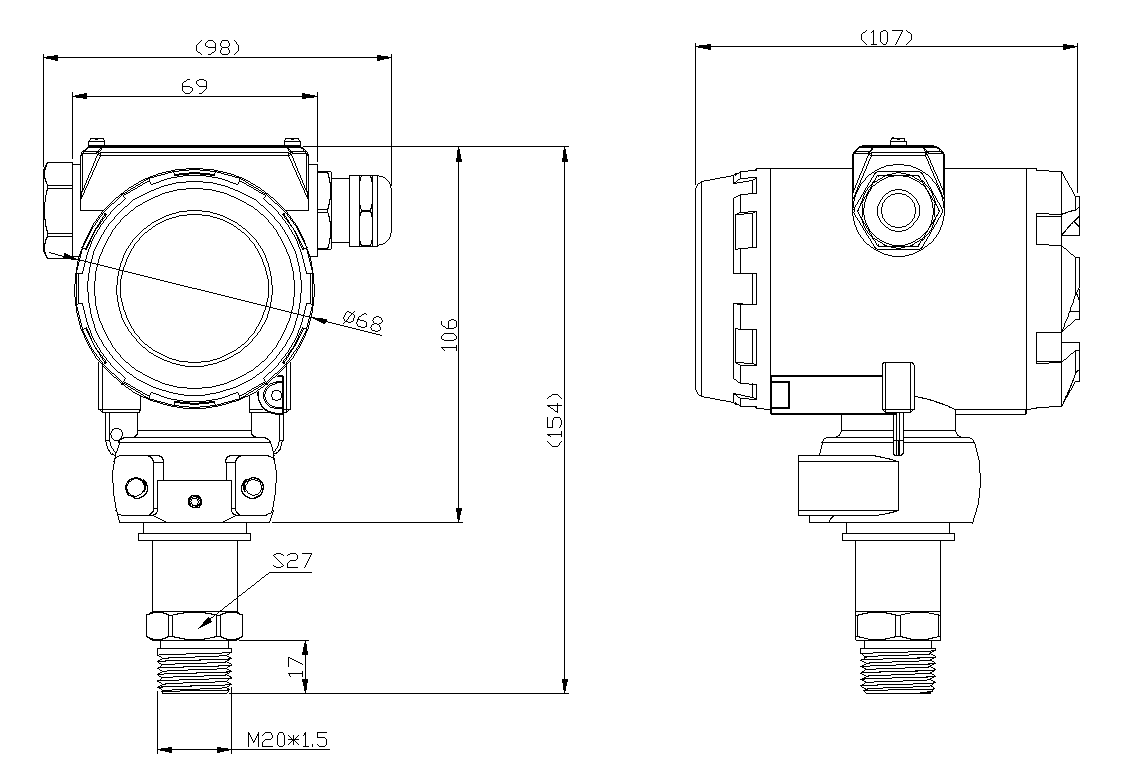

Dimensions

Output Options

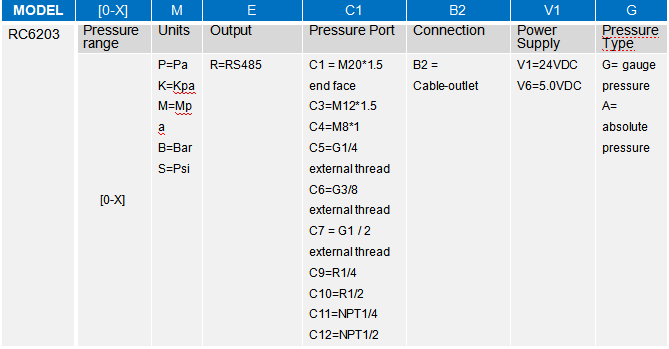

Ordering Information

The model selection code of the example is as follows

Examples: RC6203-[0-1]M-E-C1-B2-V1-G (RC6203 industrial pressure transmitter (2088 housing), measuring range 0-1mpa, e = 4 ～ 20mADC output, pressure interface M20 * 1.5 end face, cable outlet, 24V power supply, gauge pressure)

Note: for special requirements, please contact the manufacturer.

1. Please note that the tested medium shall be compatible with the part contacting the product and medium.

2. When the transmitter with negative pressure at zero position is required, please indicate the range when ordering.

3. For special requirements, please consult with our company and indicate in the order.
