Features

High reliability and stability

Compact structure and convenient installation

Advanced anti-interference and anti surge circuit protection

Excellent anti-shock, anti-overload, anti-vibration and corrosion resistance

It can be adjusted and displayed on site

Description

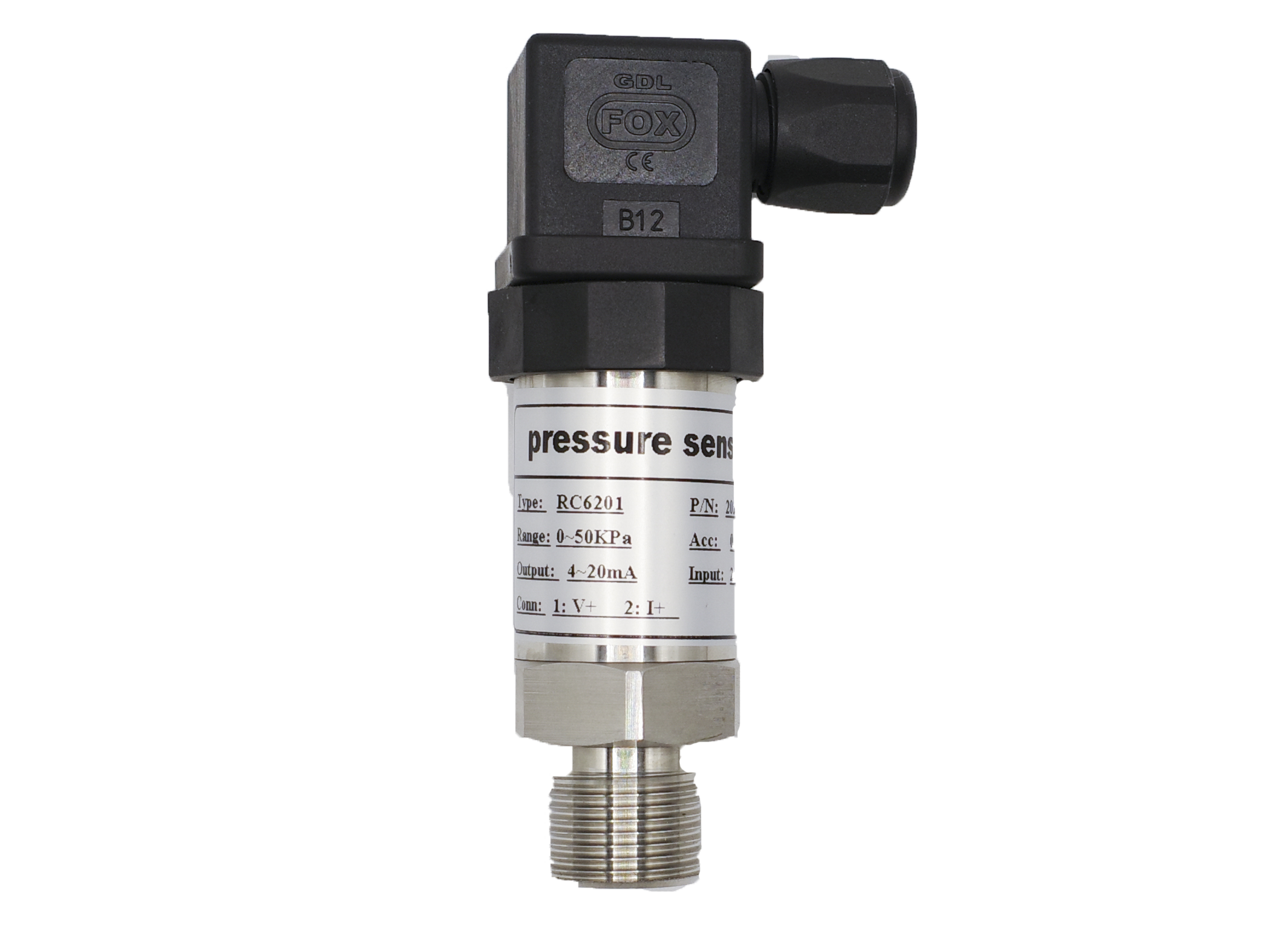

RC6201 series general low-pressure transmitter is a high-performance pressure transmitter launched by our company. The piezoresistive OEM pressure sensor with stainless steel isolation diaphragm is used as the signal measuring element, and the latest ASCI amplifying circuit is used for the amplifying circuit. The temperature shift of the sensor and the circuit is compensated as a whole, and the sensor is installed in the stainless-steel shell to convert into the standard output signal. In the standard purification production process, all the parameter are strictly controlled. The whole product has undergone strict testing and aging screening of components, semi-finished products and finished products, the performance is stable and reliable.

RC6201 series general low-pressure transmitter can adjust zero point and full range output with potentiometer on site. The product is widely used in the detection and control of fluid pressure in industrial control, process detection, chemical industry, electric power, hydrology, geology and other industries.

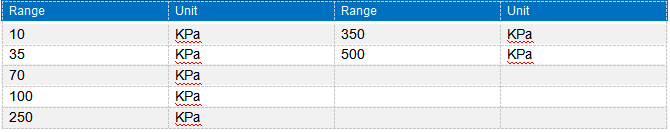

Standard Ranges

Gauge pressure, absolute pressure and differential pressure ( example )

* No absolute pressure in the range of 0.5 psi to 2.5 psi

Atmospheric pressure

Vacuum pressure

Note: for special requirements, please contact the manufacturer.

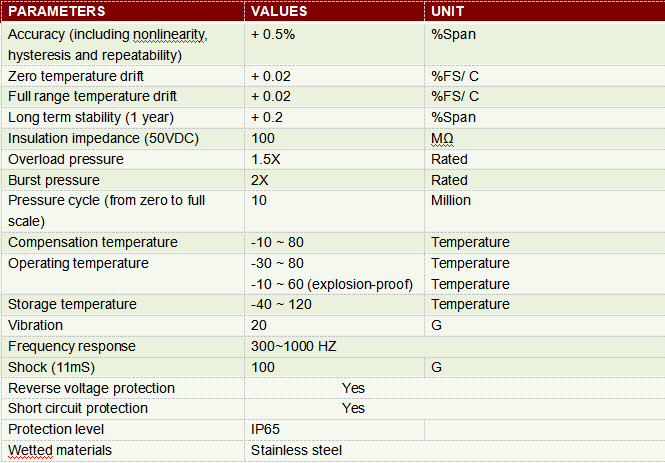

Performance Parameters

Power supply: 5Vdc, 9～30Vdc, 3.3Vdc

Reference temperature: 25℃

Note: For special requirements, please contact us.

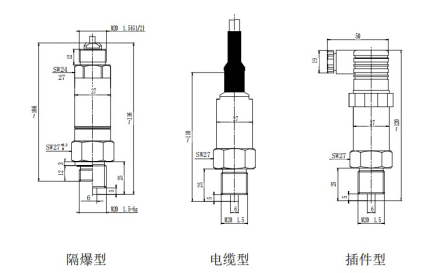

Dimensions

Note: Please contact us for the code confirmation

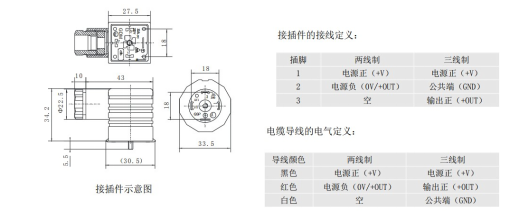

Output Options

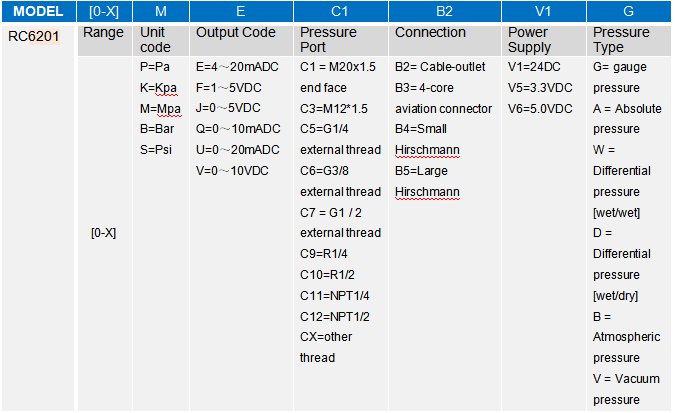

Ordering Information

The selection code of the example is as follows:

Example: RC6201-[0-10]K-E-C1-B2-V1-G (RC6201 series general low pressure transmitter, measuring range 0-10kpa, e = 4 ~ 20mADC output, pressure interface M20 * 1.5 end face, cable outlet, 24V power supply, gauge pressure)

Note:

1. Please note that the tested medium shall be compatible with the part contacting the product and the medium.

2. When the transmitter with zero pressure and negative pressure is required, please indicate the range when ordering.

3. For special requirements, please consult with our company and indicate in the order.
