Features

Stainless steel single piece integrated structure, no O-ring, no leakage harzard

Wide pressure range, strong overload capacity, long life span

LCD color backlight screen, normal state green, alarm red

Toppling detection

High sensitivity leakage detection, fast leakage instantaneous warning

RS485 bus output and standard MODBUS protocol

Wide power supply range, positive and negative polarity protection of power supply

CE certification

Description

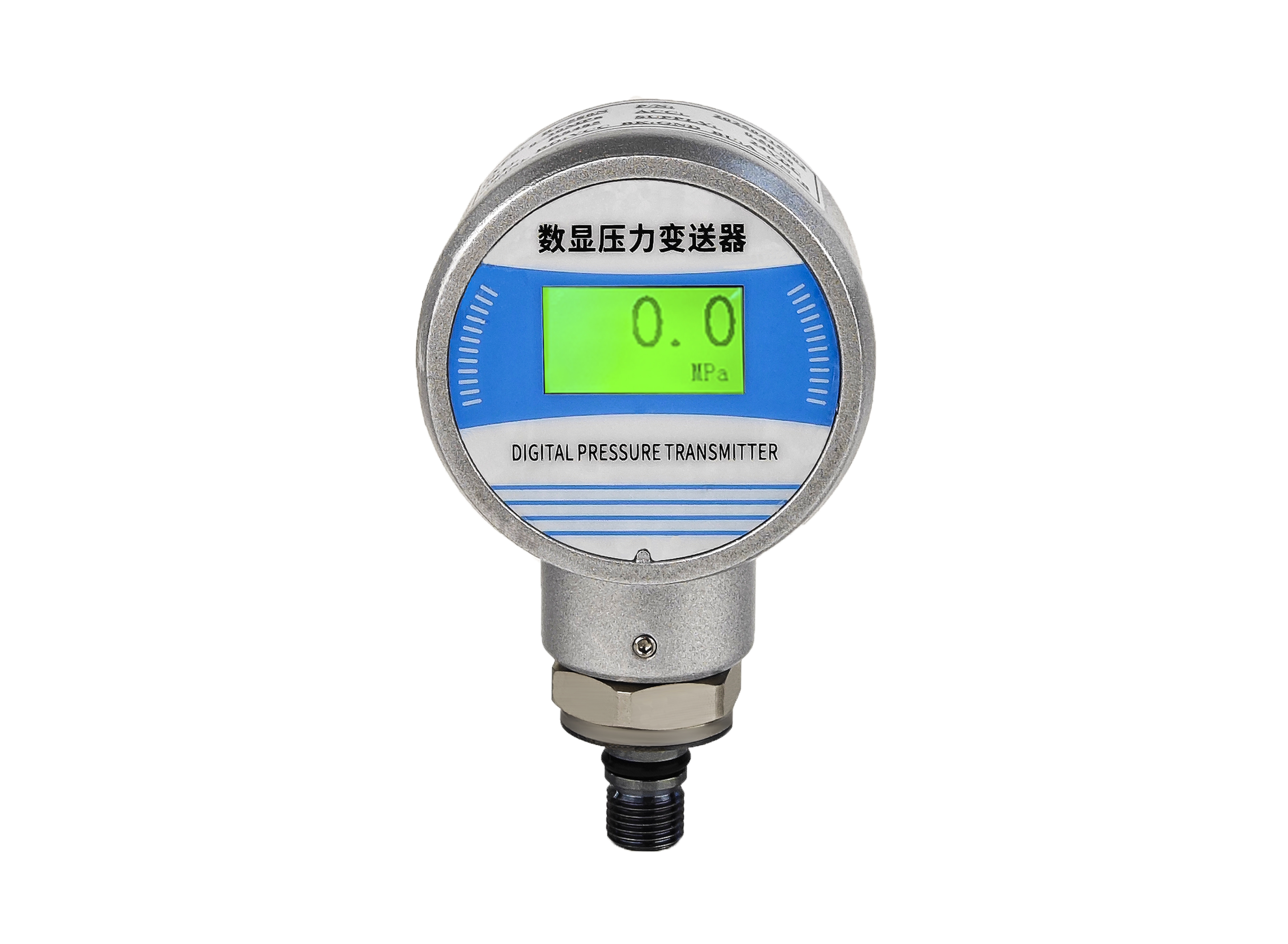

The pressure seat of RC580N pressure transmitter is processed with 17-4PH stainless steel single piece integrated structure, the integrated stainless-steel diaphragm makes its overload performance much higher than that of diffused silicon, ceramic and other common cores, there are no weld, silicone oil or other organic matters on the pressure port, and the sealing performance is good. The sensitive elements of sensor are firmly sintered on the pressure seat by glass micro-melting technology, which greatly improves the performance of sensor, such as high temperature resistance and anti-vibration, ensuring the long-term stability, reliability and durability of the transmitter in harsh industrial environment. In the standard purification process, all the parameters are strictly controlled, the whole product has undergone strict testing and aging screening of components, semi-finished products and finished products, so the performance is stable and reliable.

RC580N pressure transmitter is an industrial pressure transmitter promoted by our company, with small-size, high-performance and low-cost. Applications: gas fire extinguishers, dry powder fire extinguishers, water-based fire extinguishers, high-pressure gas cylinders, as well as the pressure measurement and control on industrial site.

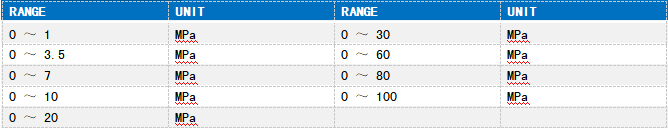

Standard Ranges

Note: We are the manufacturer, if any special requirement, please contact us

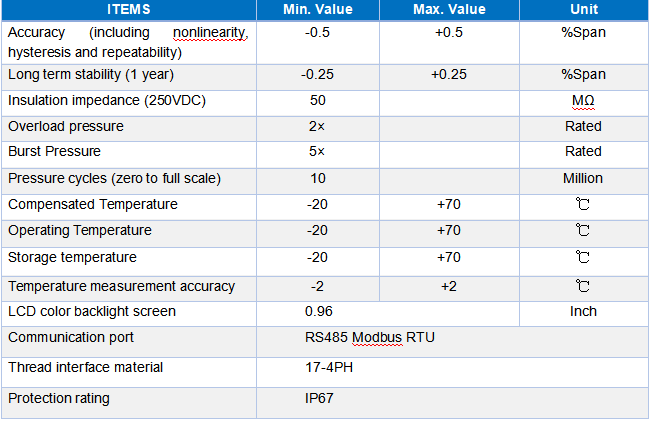

Performance Parameters

Ambient Temperature: 25℃

Note: For special requirement, please contact us.

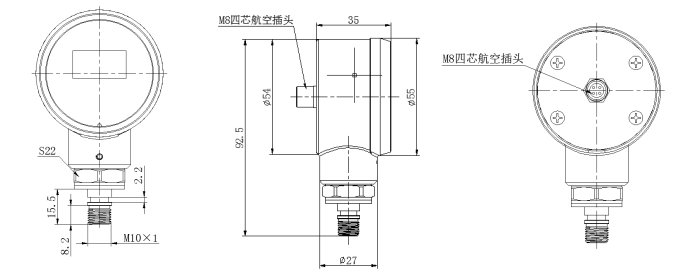

Dimensions

ote: For special requirement, please contact us.

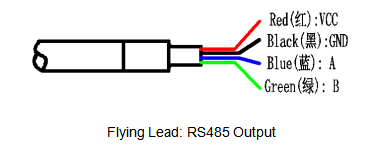

Connection Definition and Output Options

Note: The actual color is based on the factory object. For special needs, please contact the manufacturer.

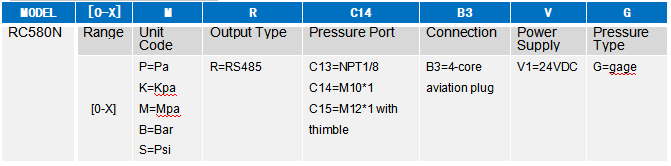

Ordering Information

Example: RC580N-[0-1]M-R-C14-B3-V1-G(RC580N Pressure Transmitter, range: 0-1MPa, output: RS485,pressure port: M10*1, connection: 4-core aviation plug, power supply: 24V, gage）

Note:

1. Please note that the tested medium shall be compatible with the part contacting the product and medium, while ordering.

2. For special requirements, please consult with our company and indicate in the order.
