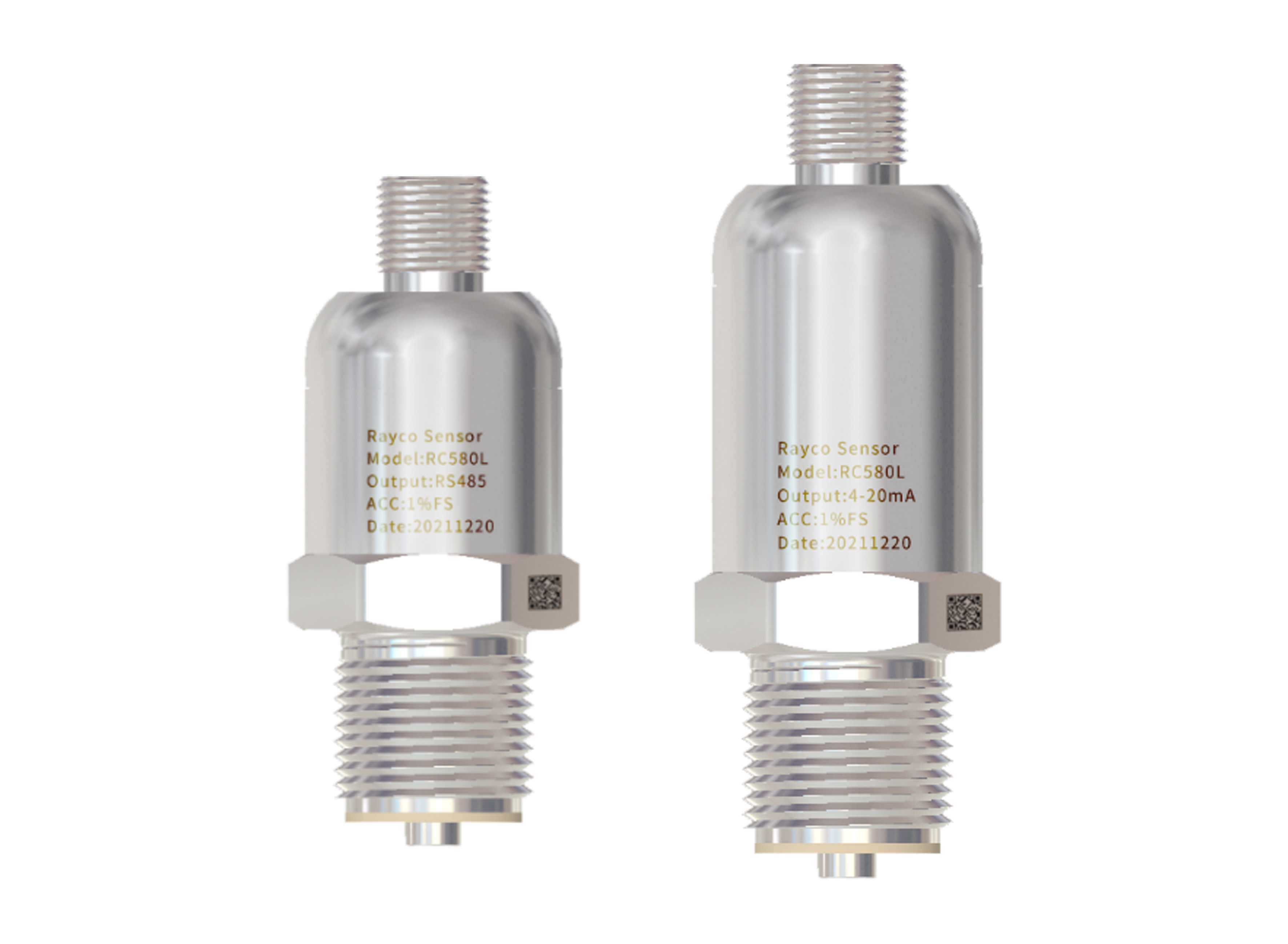

RC580L Gas Density Sensor

Product OverviewThe RC580L series gas density sensor is primarily used for continuous monitoring of gas density in high-voltage electrical equipment in transformer substations

Hotline:

+86-17615012720 +86-18525579062
Product Introduction:


Features

High precision micro-melting sensor technology

MODBUS® RTU digital signals or 4…20mA analog signal

Protection level IP67

Long-term stability and excellent electromagnetic compatibility

Compact design

Description

The RC580L series gas density sensor is primarily used for continuous monitoring of gas density in high-voltage electrical equipment in transformer substations, helping to prevent system failures and network interruptions in switchgear. This product can also calculate the current gas density by monitoring the pressure and temperature values of the gas. Additionally, the gas density sensor can compensate for pressure changes caused by thermal effects, ensuring that they do not impact the output values.

The RC580L series gas density sensor has two output signals: 4…20mA analog signal and RS485 digital signal. It is suitable for any defined gas mixture, including SF6, nitrogen, carbon tetrafluoride, oxygen, carbon dioxide, 3MTM, NovecTM 4710, helium and argon. This product adopts micro-melting pressure sensor technology, with high long-term stability and no requirement of maintenance and re-verification. At the same time, the design of the gas-tight sealing weld and the measurement unit without sealing element is also adopted, which can ensure the permanent sealing of the measurement unit.

We can do provide intelligent solutions for both the modernization of existing substations and the construction of new ones.


Application

SF6 Gas-Insulated Switchgear (GIS) SF6 Gas-Insulated Circuit Breaker

SF6 Gas-Insulated Instrument Transformer SF6 Gas-Insulated Busbar System

SF6 Gas-Insulated inflatable cabinet SF6 Gas-Insulated Ring Main Unit (RMU)

SF6 Gas-Insulated Pole-Mounted Switch SF6 Gas-Insulated Transformer

Perfermance Parameters

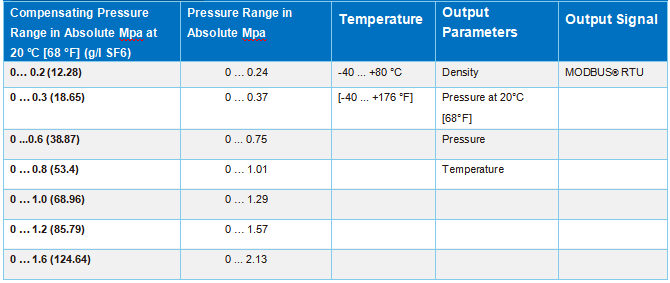

Digital Output Range

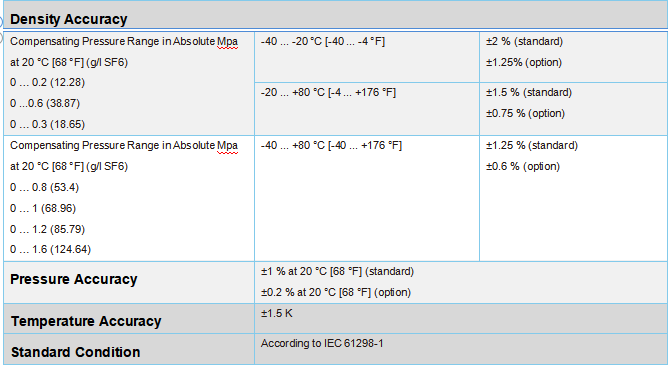

Digital Output Accuracy



Note: Density accuracy is limited to pure SF₆ gas and gas mixtures consisting of 6 % Novec 4710, 5 % O₂ and 89 % CO₂.

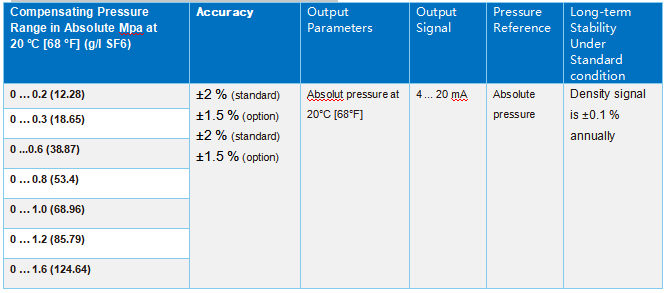

Analog Output Range and Accuracy


1 ) The compensation pressure measurement parameters suitable for the whole temperature range of − 40... + 80 °C [ − 40... + 176 °F ]; it is limited to pure SF6 gas.

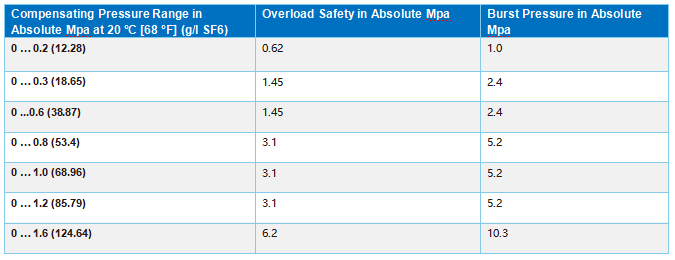

Overload Safety and Burst Pressure

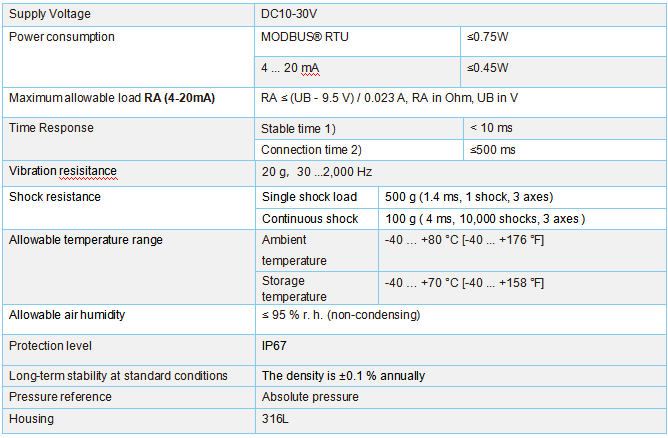

Operating Parameters



1)e.g. transient pressure spikes 2) Time from power-on until the first measured value output.

Electronics Connection

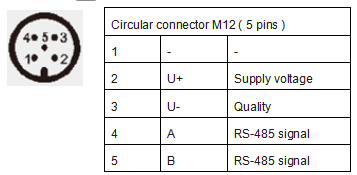

Electronics connection for digital output


Circular connector M 12 x 1 metal (5 pins)

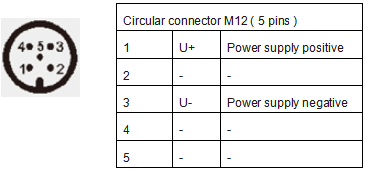

Electrical connection of analog output



Circular connector M12 x 1 metal (5 pins)

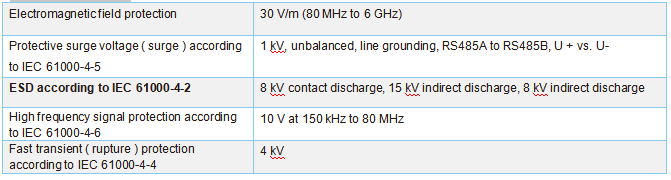

EMC Testing



EMC Testing

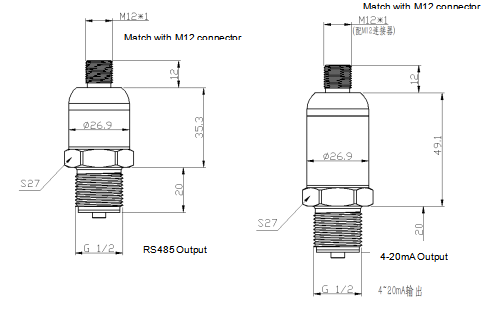

Note:

The above threads are examples. For special requirements, please contact the manufacturer.

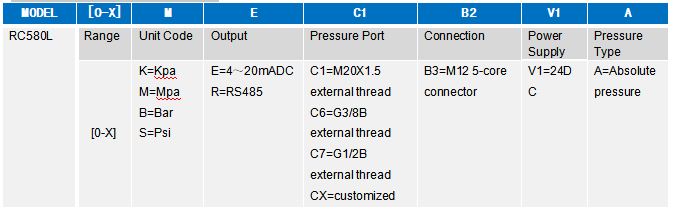

Ordering Information




Example: RC580L-[0-0.5]M-E-C1-B2-V1-A (RC580L Sulphur hexafluoride density transmitter, range: 0-0.5 MPa, output: 4-20mA, port: M20*1.5 threaded connector, connection: M12 5-core connector, power supply: 24DC, absolute pressure)

Note:

1. Please note that the tested medium shall be compatible with the part contacting the product and medium, while ordering.

2. For special requirements, please consult with our company and indicate in the order.
