Features

Stainless steel single piece integrated structure, no O-ring, no leakage harzard

Wide pressure range, strong overload capacity, long life span

OLED real-time display, clearly visible

RS485 bus output, standard MODBUS protocol

Automatic flip screen design, easy to read data

Vibration and toppling detections

High sensitivity leakage detection, fast leakage instantaneous warning

Wide power supply range, positive and negative polarity protection of power supply

CE certification

Description

The pressure seat of RC580D pressure transmitter is processed with 17-4PH stainless steel single piece integrated structure, the integrated stainless steel diaphragm makes its overload performance much higher than that of diffused silicon, ceramic and other common cores, there are no weld, silicone oil or other organic matters on the pressure port, and the sealing performance is good. The sensitive elements of sensor are firmly sintered on the pressure seat by glass micro-melting technology, which greatly improves the performance of sensor, such as high temperature resistance and anti-vibration, ensuring the long-term stability, reliability and durability of the transmitter in harsh industrial environment. In the standard purification process, all the parameters are strictly controlled, the whole product has undergone strict testing and aging screening of components, semi-finished products and finished products, so the performance is stable and reliable.

RC580D pressure transmitter is an industrial pressure transmitter promoted by our company, with small-size, high-performance and low-cost. It can be used for fire gas extinguisher and the pressure measurement and control of and industrial site.

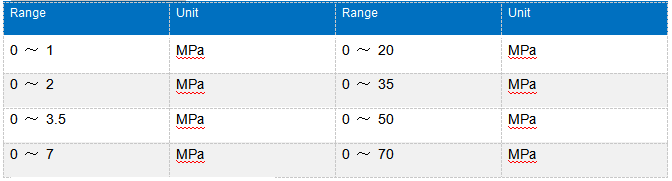

Standard Ranges

Note: We are the manufacturer, if any special needs, please contact us.

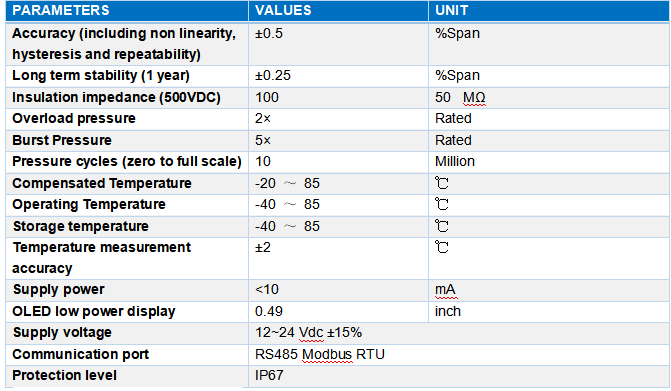

Performance Parameters

Ambient Temperature: 25℃

Note: We are the manufacturer, special needs, please contact us.

Dimensions

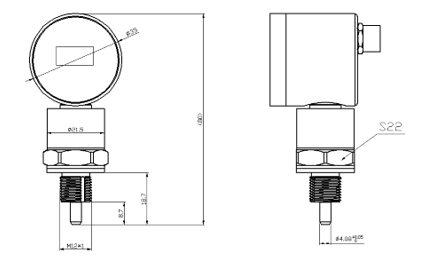

Axial dimensions

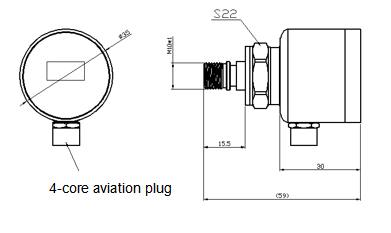

Radial dimension

Note: For any special requirement, please kindly contact the manufacture.

Connection Type and Output Options

Note : The actual color is based on the factory object. For special requirements, please contact the manufacturer.

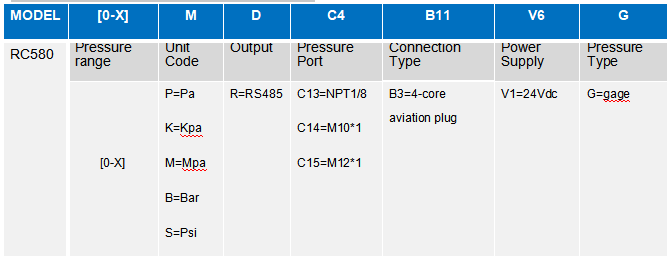

Ordering Information

The selection code of the example is as follows:

Example: RC580D-[0-1] M-R-C14-B3-V1-G (RC580D Pressure Transmitter, range: 0-40 MPa, output: RS485，pressure port: M10*1, connection: 4-core aviation plug, power supply: 24Vdc, gage）

Note:

1.Please note that the tested medium shall be compatible with the part contacting the product and medium, while ordering.

2.For special requirements, please consult with our company and indicate in the order.
