GPD Intrinsic Safe Multi-parameter Sensor for Mine

Product OverviewGPD Intrinsic safe temperature and vibration sensor for mine is a high-performance, low-power, and interference-resistant composite sensor powered by a high-energy lithium battery and featuring wireless communication capabilities.

Hotline:

+86-17615012720 +86-18525579062
Product Introduction:

Features

Intrinsic safe ex-proof product

High temperature, high pressure and stability

Anti-vibration, anti-shock, corrosion resistance Low power consumption, small hysteresis, and excellent repeatability.

Anti-interference design, suitable for harsh environment

Strong overload capacity

Wide operating temperature range

Description


GPD Intrinsic safe temperature and vibration sensor for mine is a high-performance, low-power, and interference-resistant composite sensor powered by a high-energy lithium battery and featuring wireless communication capabilities. It can collect temperature and vibration data. The product uses imported platinum resistance temperature sensors as the measuring element, with vibration sensing developed using high-performance MEMS chips embedded in the device. It supports various output: current, voltage, RS485 and more. The long-distance wireless transmission of signal is realized by the way of wireless communication, simplifying the installation mode, saving the of customers’ wiring cost, and truly achieving the purpose of energy saving and environmental protection.

This series of wireless products are widely used in mining applications, and can be used in the comprehensive detection system of mines, as well as the vibration and temperature detection of mining equipment machines. The product structure is made of stainless steel metal materials, which is firm, reliable and suitable for all kinds of harsh environments.

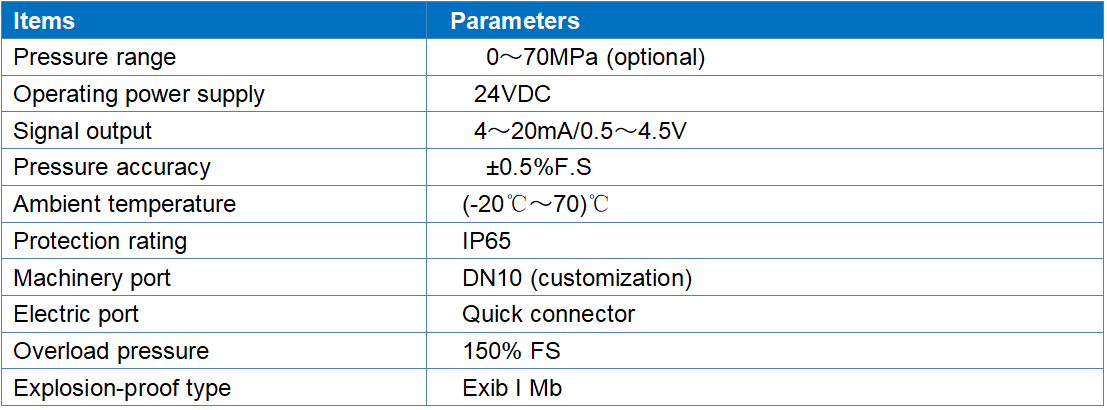

Performance Specifications


Note: For special requirement, please feel free to contact us.

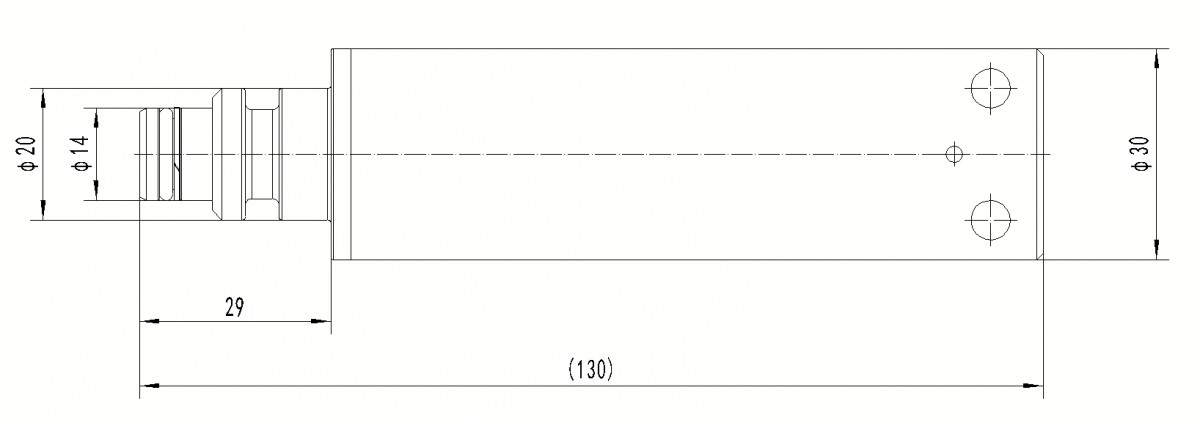

Dimensions

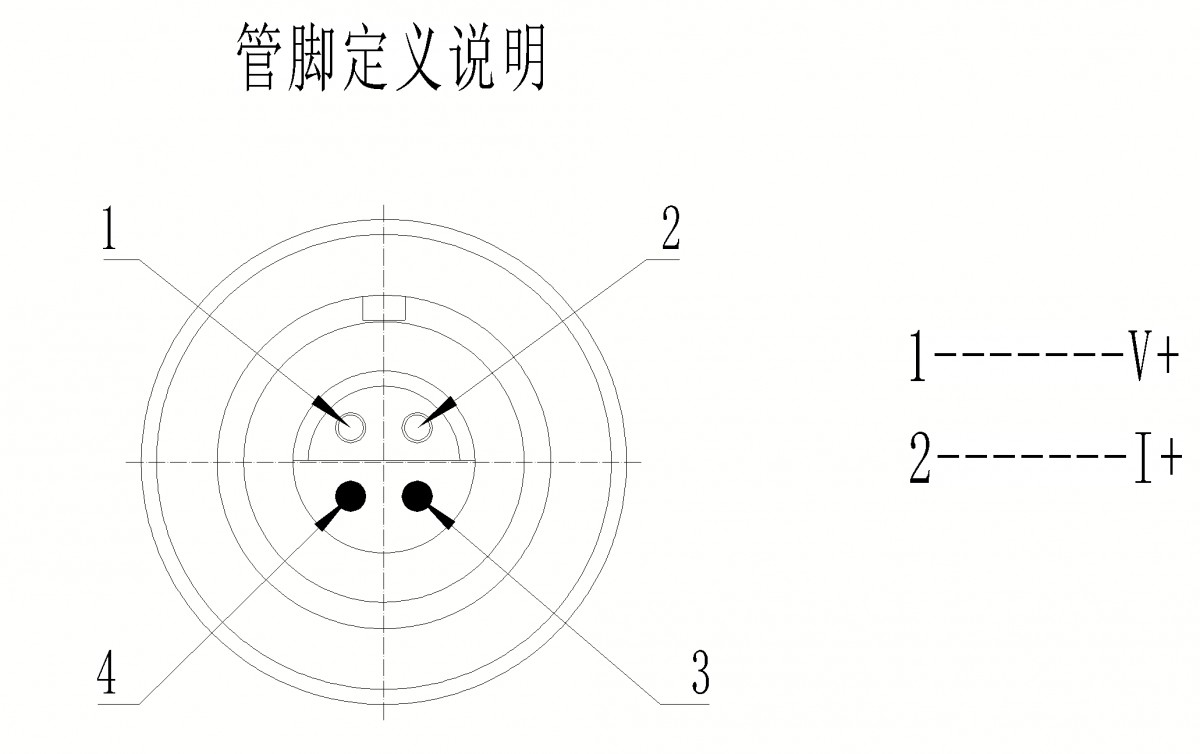

Connection Type and Output Option


Figure 1 (4~20mA output)

Note: For special requirement, please contact us.
1. Please note that the tested medium shall be compatible with the part contacting the product and the medium.
2. For special requirements, please consult with our company and indicate in the order.
