RC206S Digital Pressure Transmitter

Product OverviewThe RC206S digital output pressure transmitter is a new generation intelligent digital product, featuring high accuracy, high reliability, and ease of installation and use. With a wide voltage range and low power consumption, it also has a multi-level protection design for strong anti-interference performance.

Hotline:

+86-17615012720 +86-18525579062
Product Introduction:

Features

Stainless steel single piece integrated structure, no O-rings

High pressure

Adapting to harsh environment

Digital signals output

High stability and reliability

Wide measuring range

Strong overload capacity

Wide operating temperature range

Description

The RC206S digital output pressure transmitter is a new generation intelligent digital product, featuring high accuracy, high reliability, and ease of installation and use. With a wide voltage range and low power consumption, it also has a multi-level protection design for strong anti-interference performance. Supporting the standard I²C bus with a maximum speed of 400Kbps and a sampling rate of 50 times per second, it consumes less than 1mA during operation and only 1μA in standby mode. The standard I²C communication protocol makes this transmitter particularly suitable for computer control systems.
The pressure seat of RC206S digital output pressure transmitter is processed by 316L stainless steel or 17-4PH stainless steel single piece integrated structure, with good overload performance. There are no welds, silicone oil or other organic matters in the pressure port, so the sealing performance is good. The sensitive element of sensor is firmly sintered on the pressure seat with glass micro-melting technology, which greatly improves the sensor’s performance in high temperature resistance, vibration resistance and more, ensuring the long-term stability, reliability and durability of sensor in harsh industrial environments. In the standard purification production process, all the parameters are strictly controlled, the whole product has undergone the strict testing and aging screening of components, semi-finished and finished products, the performance is stable and reliable.

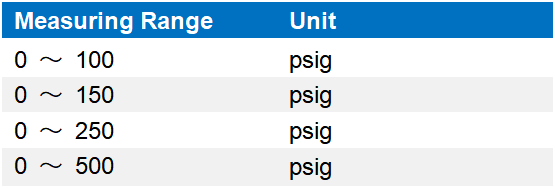

Range Option

Note: For special requirement, please consult with Rayco.

Performance Specifications

Ambient Temperature: 25℃


Note: We are the manufacturer, special needs, please contact us.

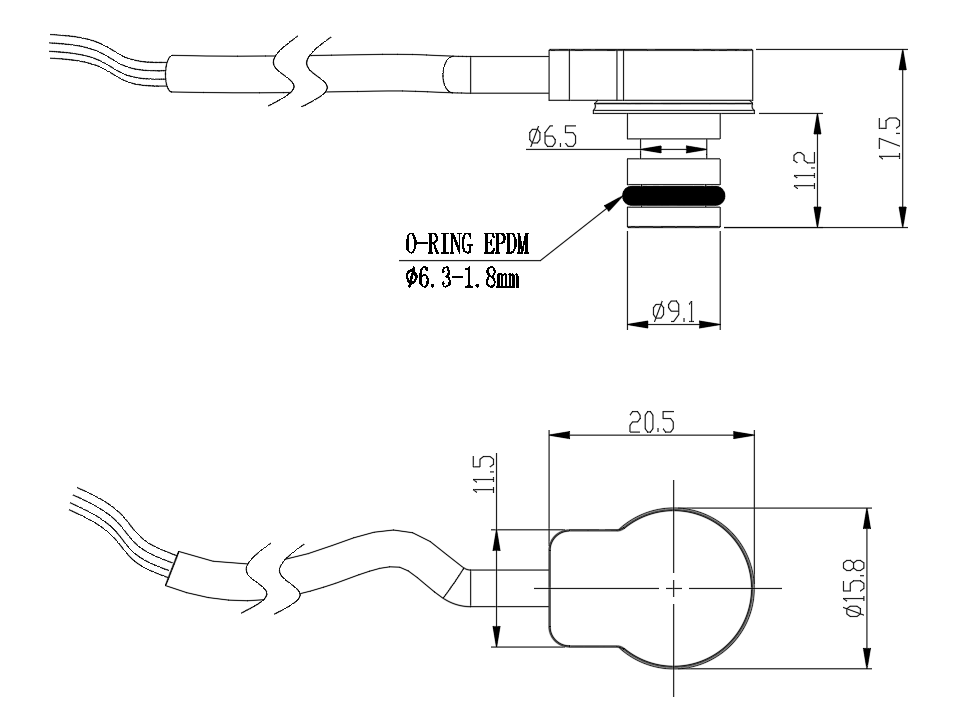

Outline Dimension

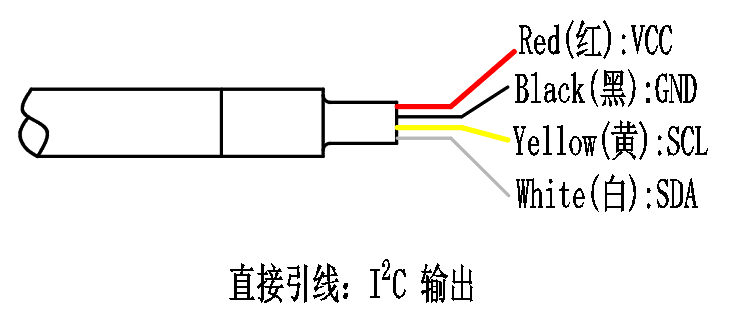

Connection Definition




Note: The actual color is based on the factory object. For special needs, please contact the manufacturer.
