RC2062 Pressure Transmitter

Product OverviewThe pressure seat of RC2062 constant pressure water supply special pressure transmitter is processed with 17-4PH stainless steel single piece integrated structure, the integrated stainless-steel diaphragm makes its overload performance much higher than that of diffused silicon, ceramic and other common cores.

Hotline:

+86-17615012720 +86-18525579062
Product Introduction:

Features

Stainless steel single piece integrated structure, no O-rings

Absolute pressure

Insulation resistance ≥ 100MΩ@250VDC

Strong overload capacity

High stability and reliability

Wide operating temperature range

Description

The pressure seat of RC2062 constant pressure water supply special pressure transmitter is processed with 17-4PH stainless steel single piece integrated structure, the integrated stainless-steel diaphragm makes its overload performance much higher than that of diffused silicon, ceramic and other common cores. There is no weld, silicone oil or other organic matter on the pressure port, and the sealing performance is good. The sensitive elements of sensor are firmly sintered on the pressure seat by glass micro-melting technology, which greatly improves the performance of sensor, such as high temperature resistance and anti-vibration, ensuring the long-term stability, reliability and durability of the transmitter in harsh industrial environment. In the process of standard purification, all the parameters are strictly controlled, the whole product has undergone strict testing and aging screening of elements, semi-finished products and finished products, so the performance is stable and reliable.
RC2062 pressure transmitter is a low-cost, high-cost performance civil and industrial products. It is Widely used for pressure measurement of industrial process site in petroleum, chemical, metallurgy, electric power, hydrology etc.

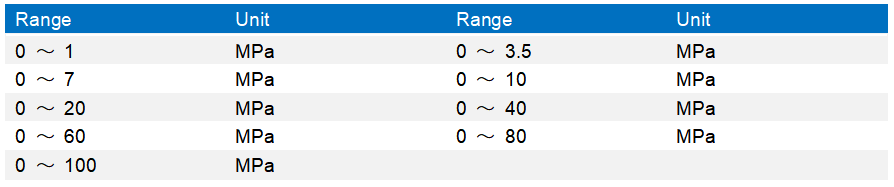

Range Option


Note: For special requirement, please contact us.

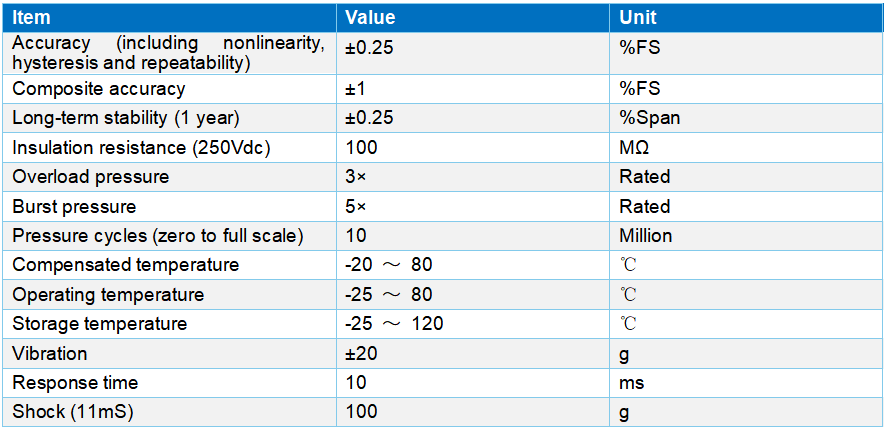

Performance Specifications

Power Supply: 3.3Vdc
Ambient Temperature: 25℃




Remark: For special requirement, please contact us.

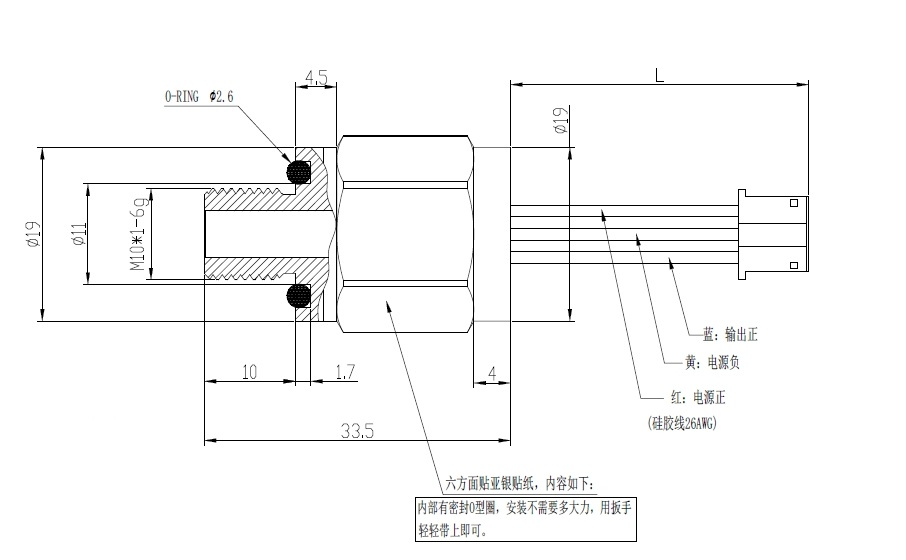

Dimensions




Note: For special requirement, please contact us.


Connection Type and Output Option

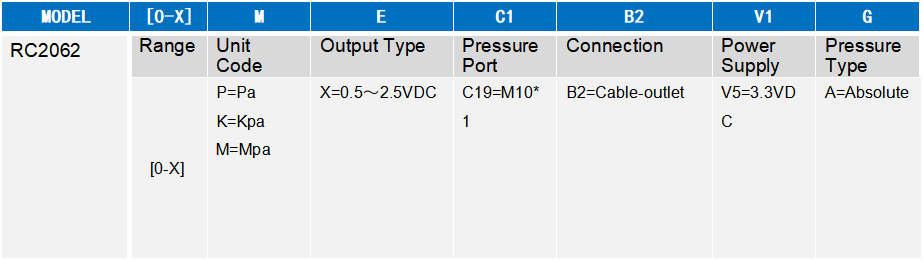

Ordering Information

The selection code of the example is as following:




Example: RC2062-[0-1]M-X-C19-B2-V5-A (RC2062 pressure transmitter, range: 0-1MPa, output: 0.5-2.5V, pressure port: M10*1, connection: cable-outlet, power supply: 3.3V, absolute)


Note: For special requirement, please contact us. 1. When selecting the type, please note that the medium to be tested must be compatible with the part of the product in contact with the medium.

2. When a transmitter with zero pressure is required, please indicate the range when placing an order.
