Features

BLE wireless communication

Low power consumption

14250 lithium battery, 1200mAh capacity,standby time up to 5 years

Glass micro-melt technology, single piece construction,sealed performance is good

Compact size, convenient on-site installation

Description

RC9406 BLE pressure transmitter adopts standard 2.4GHz wireless communication protocol, with low power consumption and long battery life. The core is processed by glass micro-melt technology, this product is characterized by stainless steel single piece integrated structure, no welds, no silicon oil or other organic matter, wide pressure range, wide measuring range coverage and strong overload capacity.

Standard Ranges

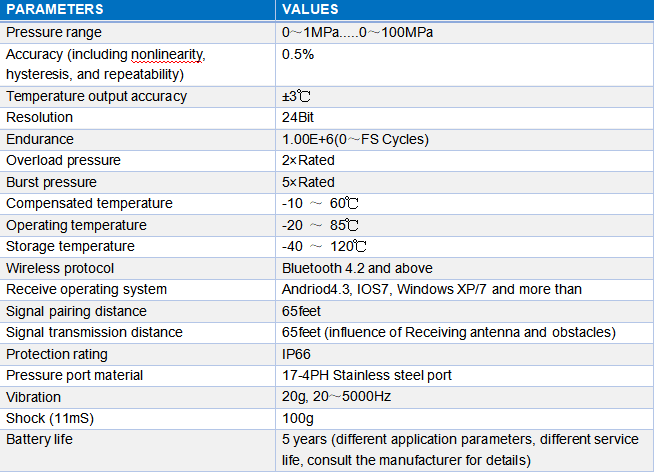

Performance Parameters

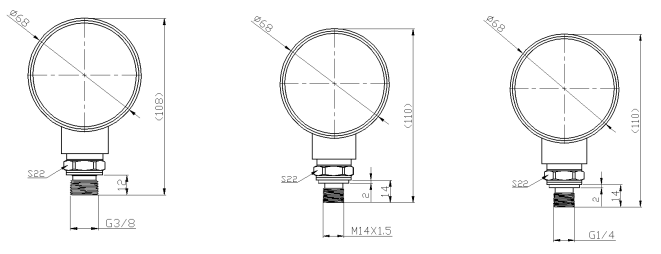

Dimensions

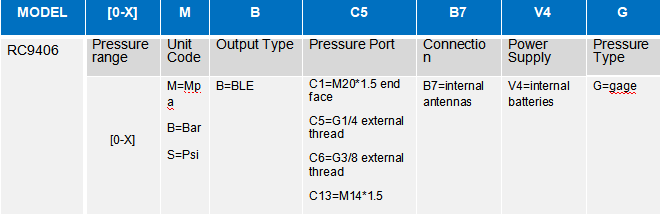

Ordering Information

The selection code of the example is as following:

Example: RC9406-[0-1]M-B-C5-B7-V4-G (RC9406 BLE wireless pressure transmitter, Range: 0-1MPa, Output: BLE, Pressure port: G1/4, Connection: internal antennas, Power supply: build-in batteries, gauge）

Note:

1. Please note that the tested medium shall be compatible with the part contacting the product and the medium.

2. For special requirements, please consult with our company and indicate in the order.
