Features

BLE wireless communication

Low power consumption

Button battery power, long standby time

Compact size, convenient on-site installation

Description

RC9401 BLE pressure transmitter adopts standard 2.4GHz wireless communication protocol, with low power consumption and long battery life. The core was processed by silicon micro-melt technology, this product is characterized by stainless steel single piece integrated structure, no welds, no silicon oil or other organic matter, wide pressure range, wide measuring range coverage and strong overload capacity.

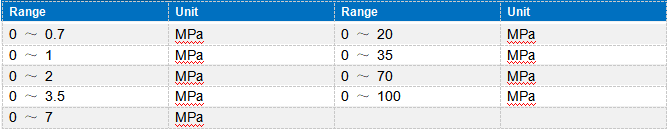

Standard Ranges

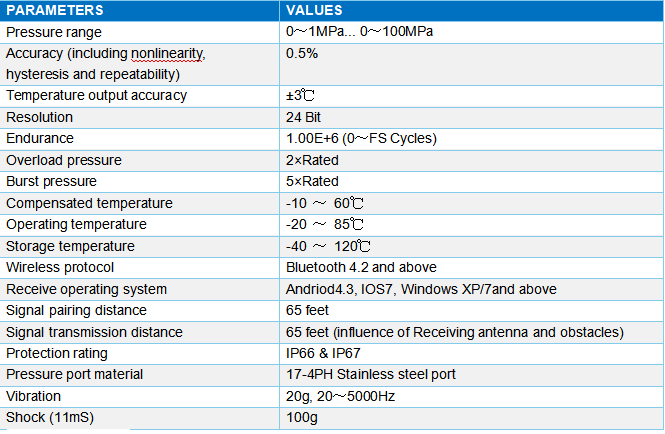

Performance Parameters

Note: For any special requirements, please contact us.

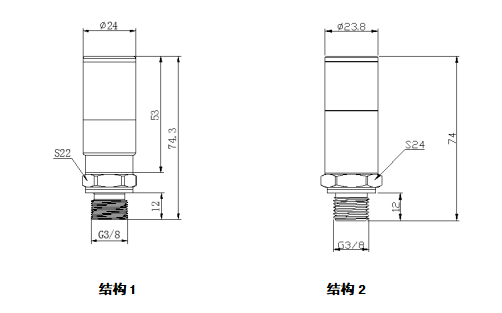

Dimensions

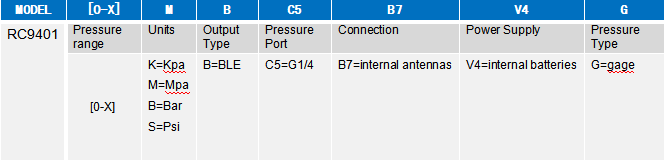

Ordering Information

The selection code of the example is as following:

Example: RC9401-[0-1]M-B-C5-B7-V4-G (RC9401 BLE wireless pressure transmitter, Range: 0-1MPa, Output: BLE, Pressure Port: G1/4, Connection: internal antennas, Power Supply: internal batteries, gauge）

Note:

1. Please note that the tested medium shall be compatible with the part contacting the product and the medium.

2. For special requirements, please consult with our company and indicate in the order.

Installation Guide

RC9206 wireless temperature and pressure transmitter can be directly installed on the hydraulic pipeline through the pressure pipe joint. In critical applications (such as severe vibration or shock), pressure pipe joints can be mechanically decoupled by means of micro hoses.
