Features

Support multiple wireless transmission modes

24 Bit high precision ADC acquisition

High energy lithium battery power supply, long standby tim

Low power consumption, static current up to 15uA

OLED display, low temperature resistance

mall structure, convenient on-site installation

With gateway function, RS485 device data can be read

Description

RC920W explosion-proof wireless gateway pressure transmitter is a high-energy lithium battery powered pressure detection intelligent instrument with wireless communication function, it can also establish 485 communication with flow meters to read their data. The instrument uses micro-melting pressure sensor or diffusion silicon core as the measuring element, and adopts a 24 bit high-precision AD converter to collect pressure and temperature signals, which realizes the zero point and temperature performance compensation of the transmitter in a wide temperature range. A variety of wireless output types are supported: 433, LORA, LORAWAN, GPRS, LTE, NBIOT, WIFI, etc. The human-machine interface adopts 1.3 inch low-power LCD screen, which is easy to operate and display. The main application fields are fire control, water supply, heating, industrial monitoring system, etc. The long-distance wireless transmission of signal is realized by the way of wireless communication, simplifying the installation mode, and saving the of customers’ wiring cost.

The product technical conditions and verification methods of RC920W explosion-proof wireless gateway pressure transmitter conform to GB3836.1-2010 "Explosive Environment Part 1 General Requirements for Equipment" and GB3836.2-2010 "Explosive Environment Part 2 Equipment Protected by Flameproof Enclosure" d ".

RC920W explosion-proof wireless gateway pressure transmitter for oil & gas fields has passed the review of explosion-proof product inspection organization designated by the state and gained "Explosion Proof Eertificate", with explosion-proof mark Exd ⅡC T6 Gb.

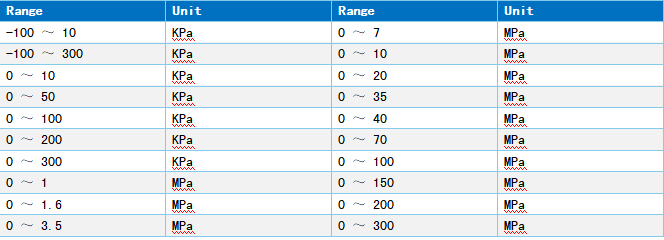

Range Option

Note: For special requirement, please contact us.

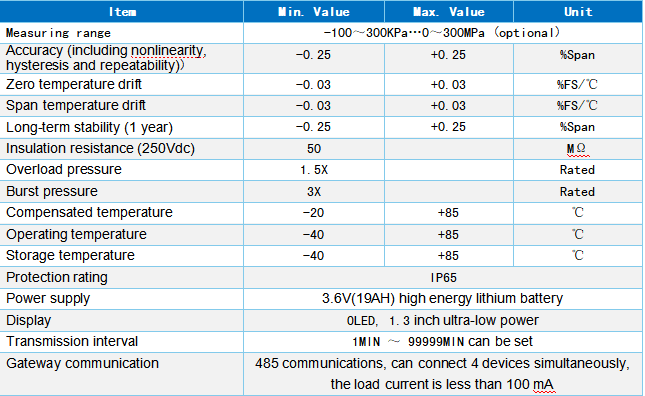

Performance Parameters

Note: For special requirement, please contact us.

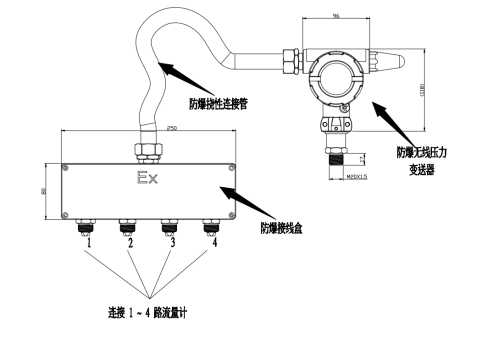

Dimensions and Output Options

Ordering Information

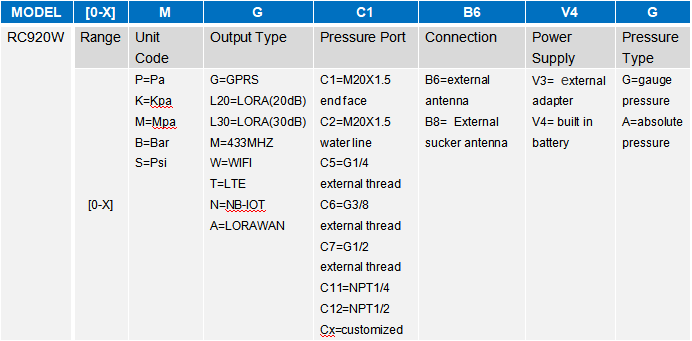

The selection code of the example is as following:

Example: RC920W-[0-1]M-G-C1-B6-V4-G (RC920W explosion-proof wireless gateway pressure transmitter, range: 0-1MPa, output: GPRS, thread interface: M20*1.5, connection: external antenna, power supply: built-in battery, gauge)

Note:

1. Please note that the tested medium shall be compatible with the part contacting the product and the medium.

2. For special requirements, please consult with our company and indicate in the order.

Installation Guide
