RC9101 Intelligent Economical Medium And High Pressure Wireless Pressure Transmitter

Product OverviewRC9101 series intelligent and economical wireless pressure transmitter is a high-energy lithium battery powered pressure detection intelligent instrument with wireless communication function.

Hotline:

+86-17615012720 +86-18525579062
Product Introduction:

Features

Support multiple wireless transmission modes

24Bit high precision ADC acquisition

High energy lithium battery power supply, long standby time

Low power consumption, static current up to 15ua

OLED display, low temperature resistance

Small structure, convenient on-site installation

Description

RC9101 series intelligent and economical wireless pressure transmitter is a high-energy lithium battery powered pressure detection intelligent instrument with wireless communication function. The instrument adopts a 24 bit high-precision AD converter to collect pressure and temperature signals, which realizes the zero point and temperature performance compensation of the transmitter in a wide temperature range. The core adopts silicon micro melting process, which is characterized by stainless steel single piece integrated structure, no O-ring, no weld, no silicone oil, wide pressure range, adaptability to harsh environment, wide range coverage, and strong overload capacity. Support a variety of wireless: 433, Lora, Lorawan, GPRS, LTE, nbiot, WIFI, etc. The human-machine interface adopts 0.96 inch low-power LCD screen, which is easy to operate and display. The main application fields are fire control, water supply, heating, industrial monitoring system, etc. Through the way of wireless communication, the long-distance wireless transmission of signal is realized, which simplifies the installation mode, saves the wiring cost of customers, and truly achieves the purpose of energy saving and environmental protection

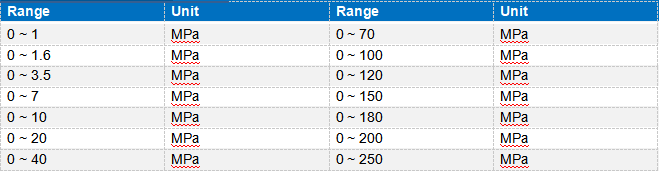

Standard Ranges

Note: We are the manufacturer, special needs, please contact us

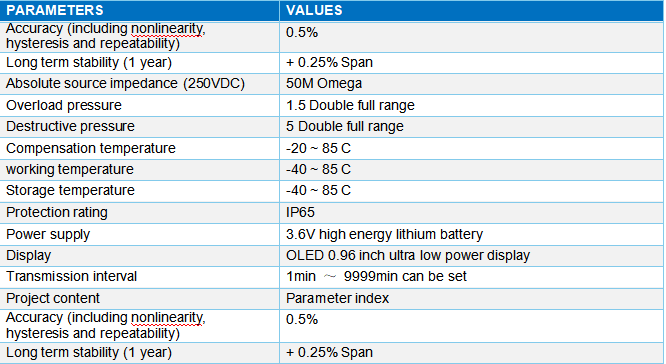

Performance Specifications



Note: We are the manufacturer, special needs, please contact us.

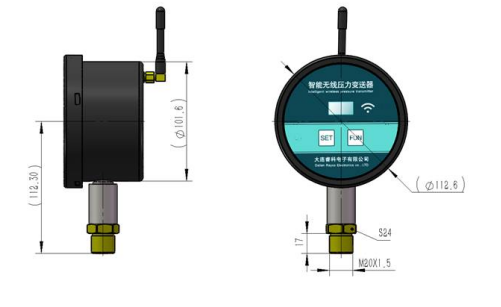

Dimensions

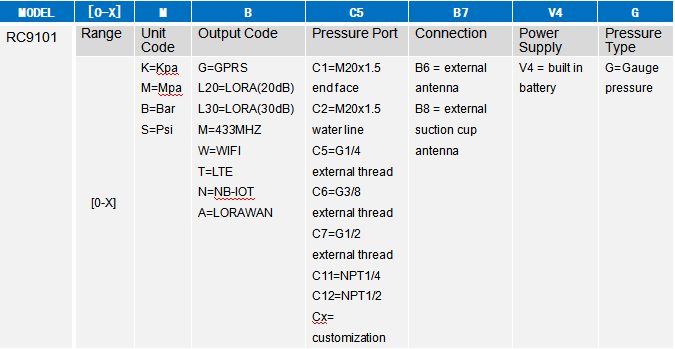

Ordering Information

The model selection code of the example is as following:



Examples: RC9101-[0-1]M-G-C1-B6-V4-G (RC9101 intelligent and economical medium-high voltage wireless pressure transmitter; Pressure Range 0-1 MPA; output: GPRS; threaded interface M20 * 1.5; External Antenna; built-in Battery Power Supply; gauge pressure)

Note: for special requirements, please contact the manufacturer.

1.Please note that the tested medium shall be compatible with the part contacting the product and the medium.

2.When the transmitter with zero pressure and negative pressure is required, please indicate the range when ordering.

3.For special requirements, please consult with our company and indicate in the order.

Installation Guide

RC9101 intelligent wireless pressure transmitter can be directly installed on the hydraulic pipeline through the pressure pipe joint. In critical applications (such as severe vibration or shock), pressure pipe joints can be mechanically decoupled by means of micro hoses. When the measuring range is less than 100KPA, it must be installed vertically. If it is installed with micro hose, the shell must be grounded separately. Do not apply force to the instrument housing when removing the instrument.
