RC6602 Two-bus Liquid Level Transmitter (2088 Housing)
Product OverviewRC6602 liquid level transmitter is a level transmitter which can realize digital communication through two-bus power supply at the same time
Hotline:
+86-17615012720 +86-18525579062
Features The electronic housing is made of aluminum alloy, housing protection level IP65 LCD color backlight screen, normal state green, alarm red Wide power supply range, no polarity access Adopting PowerBus fire protection two-bus, the bus can be powered, and no electrical isolation is required for communication and power supply. ModBus-RTU protocol, compatible with RS485 systems High reliability and stability Strong anti-interference ability, no special requirements for cables, simple wiring with low requirements Compact structure and convenient installation Anti-shock, anti-overload, anti-vibration and corrosion resistance Description RC6602 liquid level transmitter is a level transmitter which can realize digital communication through two-bus power supply at the same time, with high performance and low cost. In the application, the cost of cable and construction difficulties can be reduced. The RC6602 liquid level transmitter adopts an electronic housing made of aluminum alloy, which meets the requirements of rainproof, lightning protection, anti-corrosion and explosion-proof of the transmitter in the harsh industrial environment, and the structure is solid and easy to be installed. In the production process of transmitter, all the parameters are strictly controlled, the whole product has undergone strict testing and aging screening of components, semi-finished products and finished products, so the performance is stable and reliable. Performance Parameters ![]()

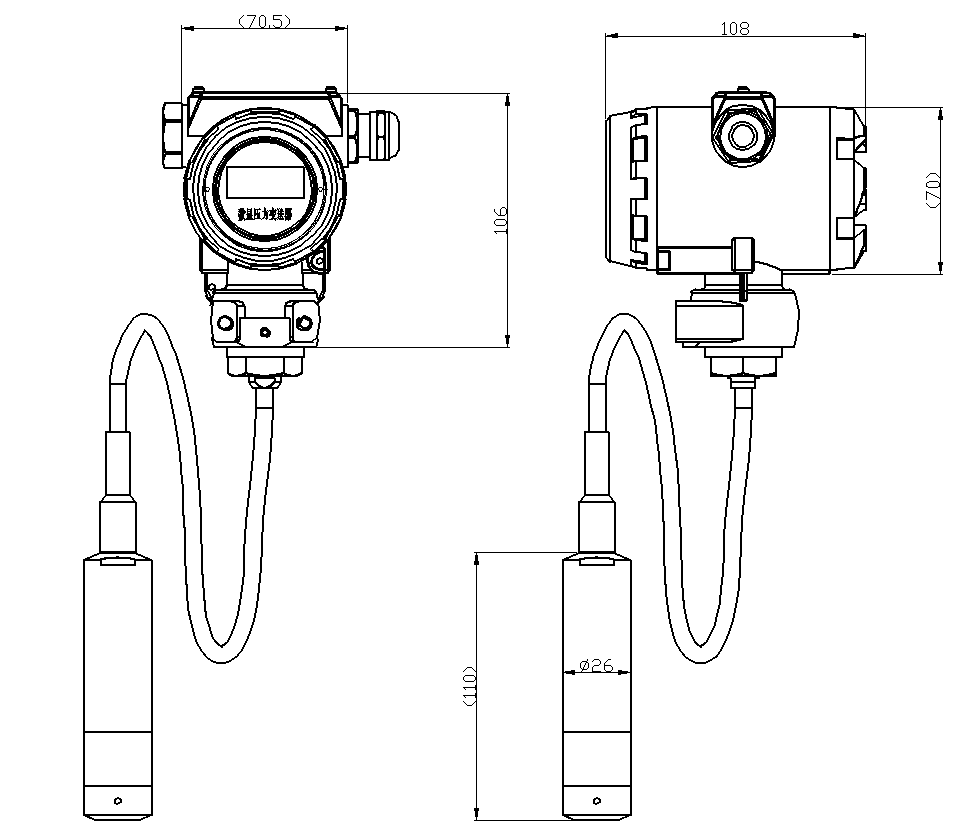

Note: For special requirements, please contact the manufacture. Dimensions
![]()

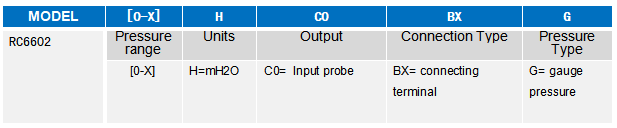

Note: For special requirements, please contact the manufacture. Ordering Information The model selection code of the example is as following: ![]()
Examples: RC6602-[0-3]H-C0-BX-G (RC6602 liquid level transmitter, range: 0~3 mH2O [indicate the length of wire], two-bus output, input probe, connecting terminal[self-prepared cable], gauge) Note: Please contact us for the code confirmation 1. Please kindly note that the tested medium shall be compatible with the part contacting the product and medium. 2. For special requirements, please consult with our company and indicate in the order.
|
