Features

Small volume

High-precision

High reliability and stability

Compact structure and convenient installation

Directly put into the liquid for use

Description

RC6601 series liquid level transmitters use a high-performance diffusion silicon piezoresistive pressure sensor as a measuring element to accurately measure the static pressure of the liquid, which is proportional to the liquid level depth, and converts it into a standard signal output through ASIC amplifier circuit. The linear correspondence between the output signal and the liquid depth is established to realize the measurement of the liquid depth, and is compatible with various acquisition devices.

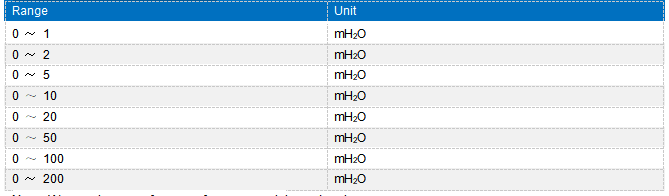

Standard Ranges

Note: We are the manufacturer, for any special needs, please contact us.

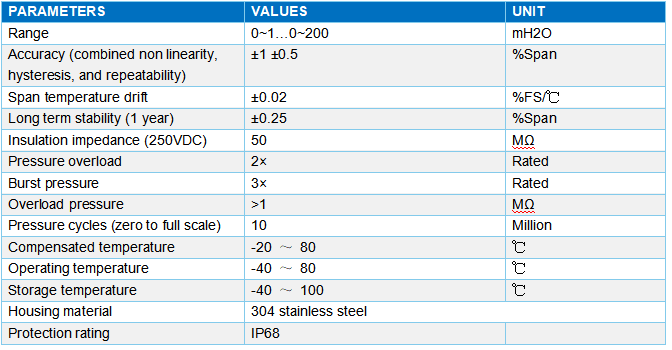

Performance Parameters

Supply Voltage：5Vdc or 9～30Vdc

Ambient Temperature：25℃

Note: We are the manufacturer, if any special needs, please contact us.

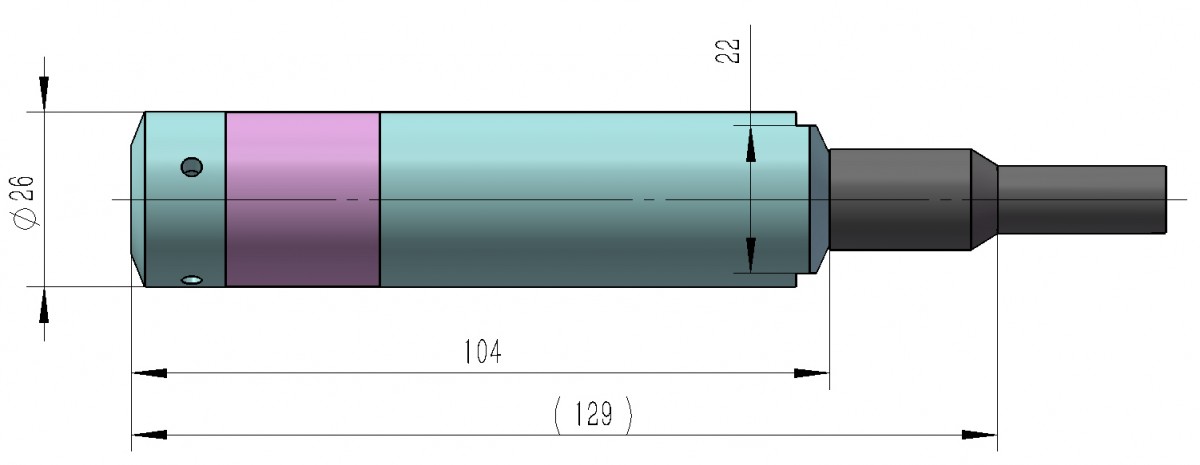

Dimensions

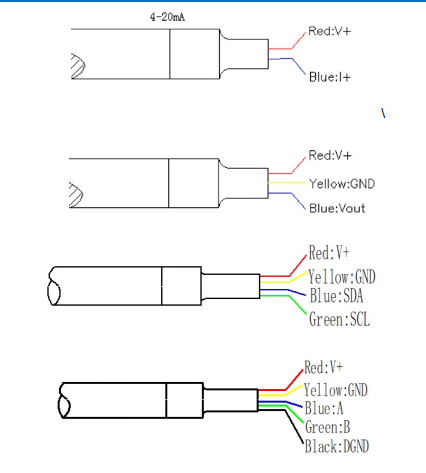

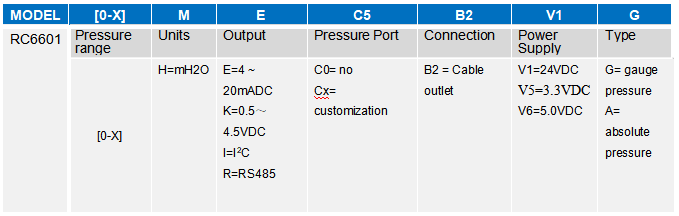

Connection Definition and Output Options

For example : RC6601- [ 0-1 ] H-E-C0-B2-V1-G ( RC6601 series general liquid level transmitter, measuring range

: 0~1 mH2O, output: 4~20mA, pressure interface: no, connection: cable outlet, [ marked line length ] power supply: 24VDC, gauge pressure )

Note: Please contact us for the code confirmation

1. Please kindly note that the tested medium shall be compatible with the part contacting the product and medium.

2. For special requirements, please consult with our company and indicate in the order.
