Features

Support for a variety of wireless transmission

24-bit high resolution ADC acquisition

High-energy lithium battery power supply, long standby time

Low power consumption, static current is 15 uA minimum

OLED display, low temperature resistance

Small structure, easy to install on site

Description

RC9204 intelligent wireless liquid level transmitter is a high energy lithium battery powered, intelligent instrument for liquid level detection with wireless communication function. The instrument uses silicon piezo resistance with stainless steel isolation film as the measuring element of pressure signal, adopts 24-bit high-precision AD converter to collect pressure and temperature signals, which realizes the zero point and temperature performance compensation of the transmitter in a wide temperature range. A variety of wireless output types are supported: 433, LORA, LORAWAN, GPRS, LTE, NBIOT, WIFI, etc. The human-machine interface adopts 1.3 inch low-power LCD screen, which is easy to operate and display. Application field is aimed at the field or supporting power supply environment inconvenient occasions of liquid level monitoring, such as fire water tank, pool, well water, etc. The long-distance wireless transmission of signal is realized by the way of wireless communication, simplifying the installation mode, saving the of customers’ wiring cost, and truly achieving the purpose of energy saving and environmental protection.

Standard Ranges

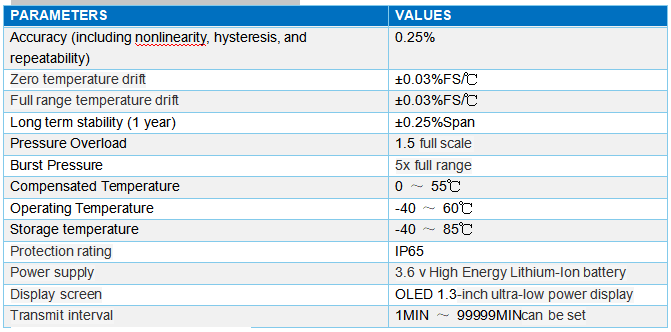

Performance Specifications

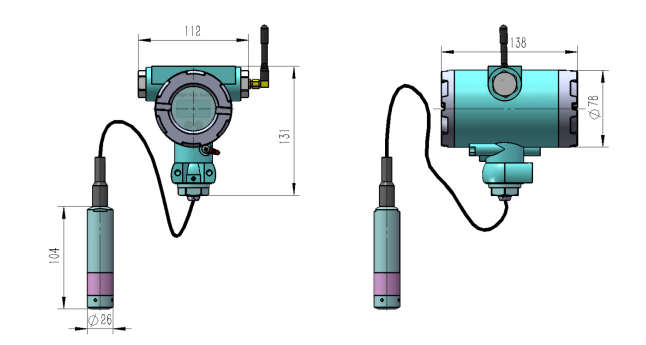

Dimensions

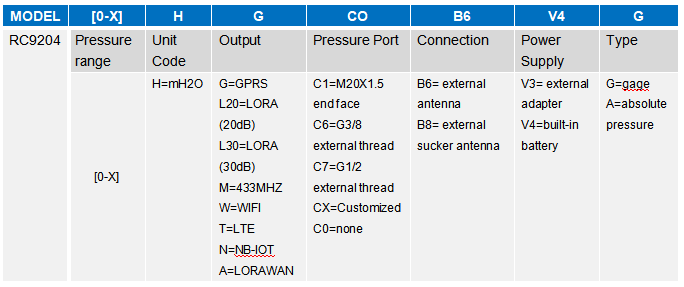

Ordering Information

The selection code of the example is as follows:

Example: RC9204-[0-5]H-G-C0-B6-V3-G(RC9204 explosion proof wireless level transmitter, Measuring 5 meters of water, Output: GPRS, Interface level probe, Connection: external antenna, Power Supply: built-in battery, gauge）

Note: for special requirements, please contact us.

1. Please note that the tested medium shall be compatible with the part contacting the product and the medium.

2. When the transmitter with negative zero pressure is required, please indicate the range when ordering.

3. For special requirements, please consult with our company and indicate in the order

Installation Guide

RC9204 intelligent wireless level transmitter probe can be installed with flange bracket, the display can be installed with a sheet metal bracket. When disassembling the instrument, do not apply force to instrument housing. The pressed sealing ring is recommended to be replaced regularly to ensure the reliable operation of the transmitter.
