Features

15 years of batch application of compensation algorithms, stable, reliable and high precision

Realizing unattended compensation and testing

Supporting compensation test of a variety of piezoresistive sensors

Test compensation data can be traced back

Integrated a variety of test standards

Multi-channel parallel acquisition, compensation, with high test

efficiency

DB78 type module interface, convenient for sensor connection

Built-in constant voltage and constant current source

Description

RK1000 piezoresistive sensor compensation test system is a compensation test system developed to improve the production efficiency of sensors. It is mainly used for zero, zero temperature drift, sensitivity temperature drift compensation and performance test of piezoresistive pressure sensors such as silicon piezoresistive sensors, ceramic piezoresistive sensors, metal strain gauge pressure sensors, sputtered film pressure sensors and micro-melt pressure sensors. The product is applied to sensor manufacturers, metrology institutes, military calibration and other fields, realizing the compensation and test of sensor temperature and pressure.

The system is mainly composed of hardware and software, which can access 64 ~ 512 sensors in parallel. The temperature compensation of the sensor is carried out. By measuring the zero and full range output values of the pressure sensor at different temperatures, according to the type of sensor, different algorithms are used to calculate the zero, zero temperature drift and sensitivity temperature drift compensation resistance values of the sensor, and the performance of the sensor is tested.

The system provides customized software to uniquely integrate pressure equipment, temperature equipment, and input equipment, which reduces manual operations, improves production efficiency, and lowers labor costs.

Technical Parameters

Number of channels: 64～512 optional (128 for one chassis);

Differential signal measurement range: -2000mV～+2000mV, single-ended measurement range: 0～10V, measurement accuracy: 0.01%;

Current measurement range: 0～30mA, measurement accuracy: 0.05%;

Constant current source: 1.0mA, accuracy 0.5%, constant voltage source: 0～8V, accuracy 0.1%;

Equipment working environment, temperature: 0 ~ 50 ℃, humidity: 35 ~ 75% R.H.

Dimensions

Chassis dimensions: 16.8 in x 7 in x 17.8 in (426.5 mm x 177 mm x 451 mm) (W x H x D)

Ordering Information

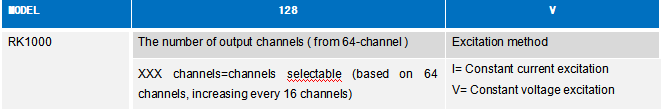

The meaning of the selection code is as following:

Example: Sensor Compensation Test System Model: RK1000-128-V (number of channels 128, constant voltage excitation)
