Features

Realizing unattended, automatic calibration test

Multi-channel parallel acquisition, with high calibration and test efficiency

Simplifying on-site operation with model management

Test data test compensation data can be traced back

Supports multiple cores

Integrated a variety of transmitter test standards

Description

RK2000 RK2000 intelligent transmitter calibration test system is a calibration test platform developed for intelligent transmitters. It consists of two parts : hardware and software. The MAX1452 calibration test system developed by our company is mainly used for the voltage and current output calibration test of the transmitter module constructed by the MAX1452 chip. The system can meet the user 's various stages from evaluation to mass production, which greatly facilitates the various uses of customers. The system has developed a virtual experimental platform for MAX1452, which integrates functions such as voltmeter and ammeter, and can realize the calibration, test and evaluation of MAX1452.

The system uses computer to control the whole process, realizes a series of operations from configuration, measurement, calculation and calibration, storage to printing, and provides security protection measures for possible problems in the calibration process. The software is a Chinese interface. It is simple, easy to use and user-friendly. The results are accurate and reliable. It is suitable for a variety of operating systems.

Technical Parameters

The number of channels : 1 ~ 256 optional ( single channel system ; 8 road expansion ; batch system from 32 )

Voltage measurement accuracy: 0.005%, measurement range: 0~5.5V;

Current measurement accuracy: 0.01%, measurement range: 0～40mA;

Operating environment, temperature: -20 ~ +60 ℃, humidity: 30 ~ 85% R.H.

Chassis size: 16.8 in x 7 in x 17.8 in (426.5 mm x 177 mm x 451 mm) (W x H x D)

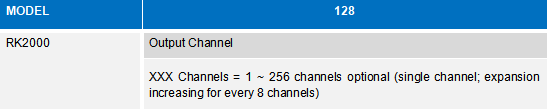

Ordering Information

The meaning of the selection code is as following:

For example : Transmitter calibration test system Model : RK2000-128 ( 128 channels )
