Features

Multiple parameters can be measured

Support multiple wireless transmission modes

Wireless communication distance≤200m (LORA)

Adopting high performance MEMS chip, with high measurement accuracy and strong anti-interference ability

24 Bit high precision ADC acquisition

High energy lithium battery power supply, long standby time

Low power consumption, static current up to 15uA

Reliable structure, good explosion-proof performance

Description

GD3 Intrinsic safe temperature and vibration sensor for mine is a high-performance, low-power, and interference-resistant composite sensor powered by a high-energy lithium battery and featuring wireless communication capabilities. It can collect temperature and vibration data. The product uses imported platinum resistance temperature sensors as the measuring element, with vibration sensing developed using high-performance MEMS chips embedded in the device. It supports various output: current, voltage, RS485 and more. Through wireless communication, the product achieves long-distance signal transmission, simplifying installation methods and reducing cabling costs for customers, truly achieving energy-saving and environmental protection goals.
This series of wireless products are widely used in mining applications, and can be used in the comprehensive detection system of mines, as well as the vibration and temperature detection of mining equipment machines. The product structure is made of stainless steel metal materials, which is firm, reliable and suitable for all kinds of harsh environments.

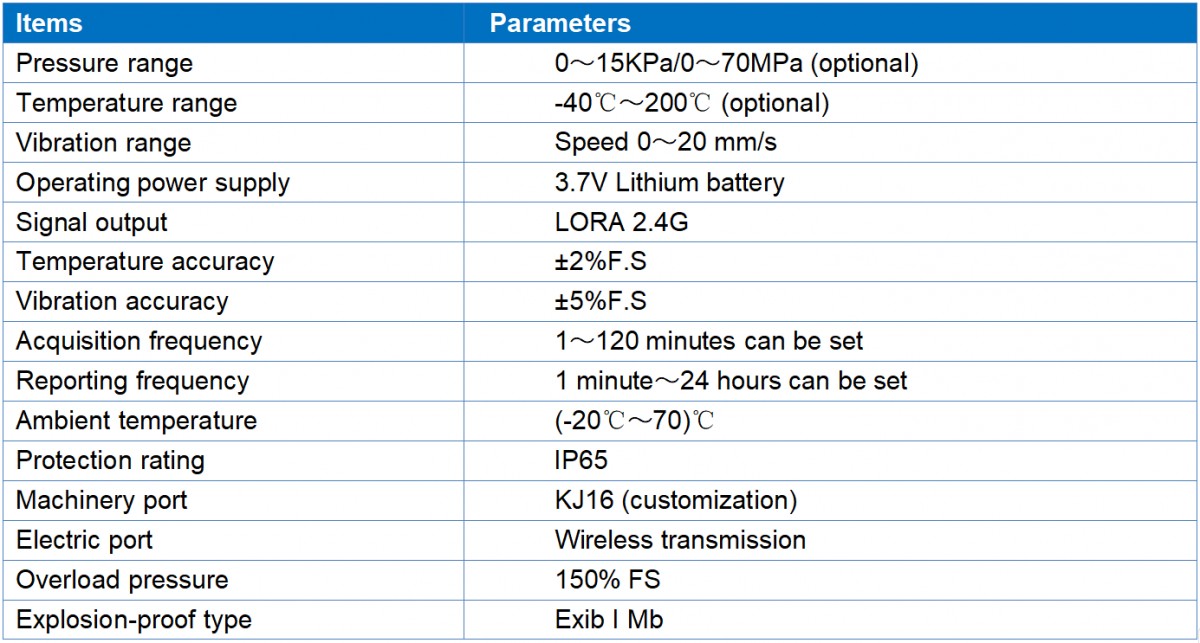

Performance Specifications

Note: We are the manufacturer, special needs, please contact us.

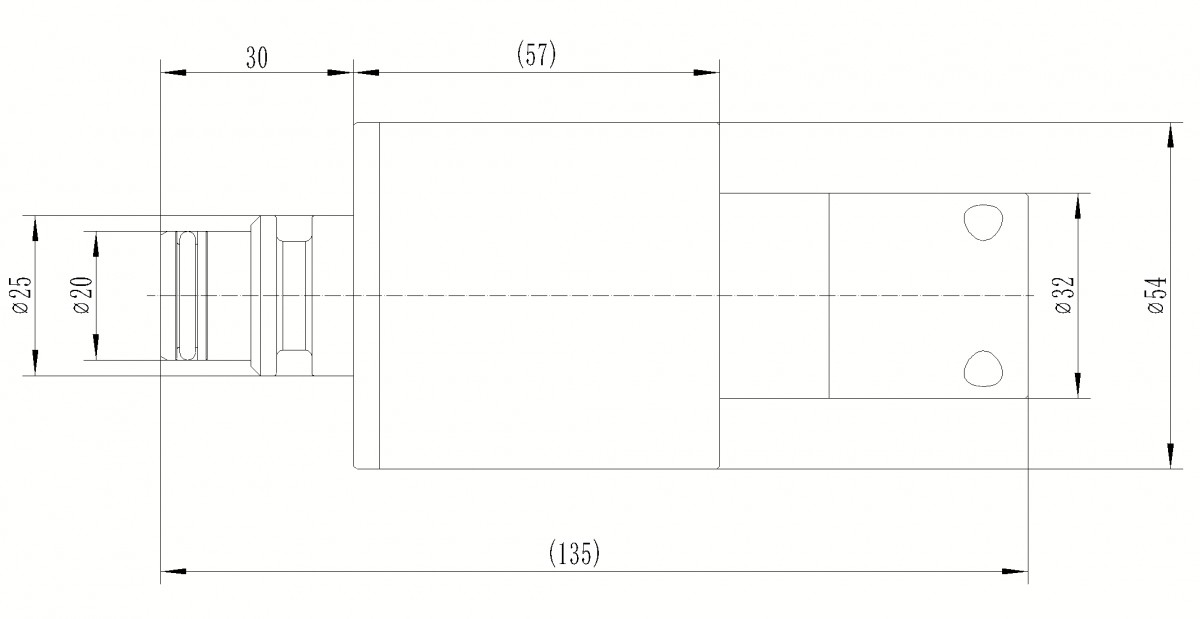

Dimensions

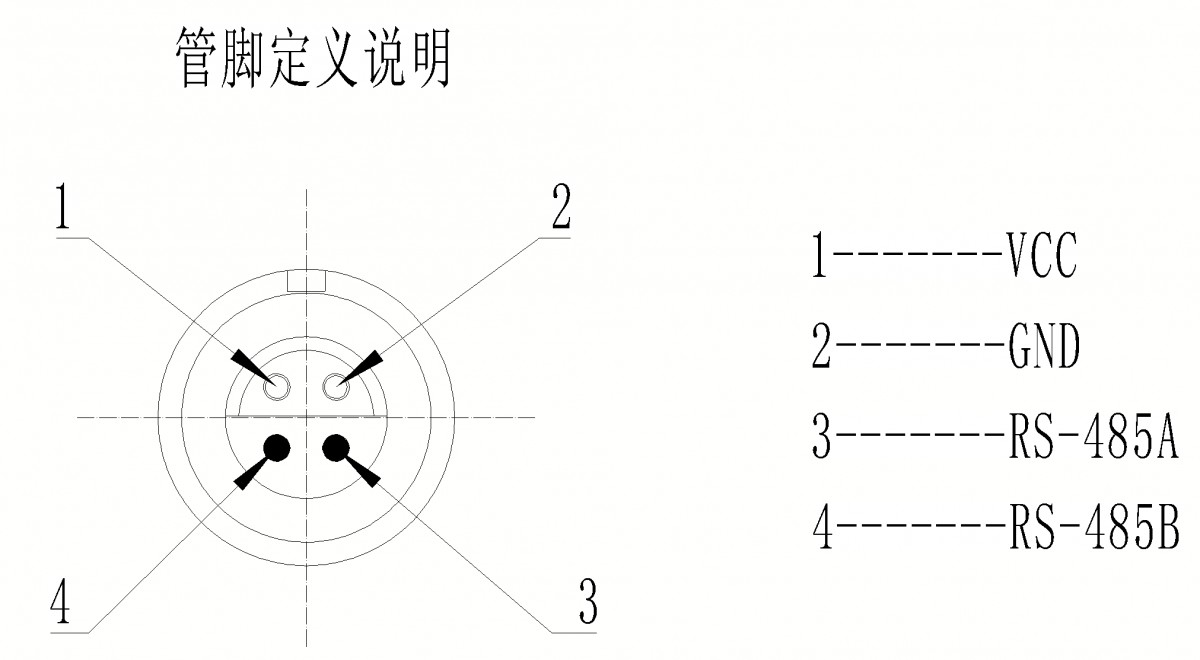

Connection Type and Output Option

Note: For special requirement, please contact us.
1. Please note that the tested medium shall be compatible with the part contacting the product and the medium.
2. For special requirements, please consult with our company and indicate in the order.
