Features

Aluminum alloy electronic housing, hosing protection level IP65

Reverse polarity protection, instantaneous overcurrent and overvoltage protection.

LCD dual-color backlit display

High reliability and stability

Overvoltage and overcurrent protection, strong environment adaption

Compact structure, easy installation

Advanced anti-interference and anti-surge circuit protection

Excellent anti-shock, anti-overload, anti-vibration and corrosion resistance

Description

RC6205 industrial temperature transmitter is a high-performance, low-cost industrial temperature transmitter launched by our company. High precision PT100 temperature sensor is adopted, with superior performance, compact size, long life span, high cost performance. Application: industrial automation control; hydropower, gas, chemistry and other industries.

RC6205 industrial temperature transmitter adopts the aluminum alloy electronic housing, which ensures that the transmitter must consider the requirements of rainproof, lightning-protected, corrosion resistant and explosion-proof under the harsh industrial environmental conditions, its structure is simple, easy to install and solid. In the standard purification production process, all the parameters are strictly controlled. The whole product has undergone strict testing and aging screening of components, semi-finished products and finished products, so the performance is stable and reliable.

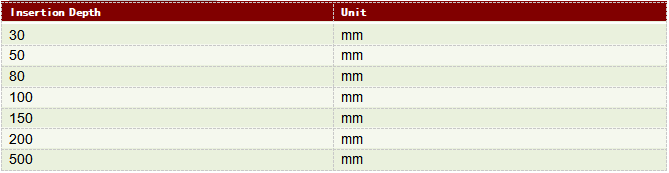

Insertion Depth Option

Note: For special requirement, please contact us.

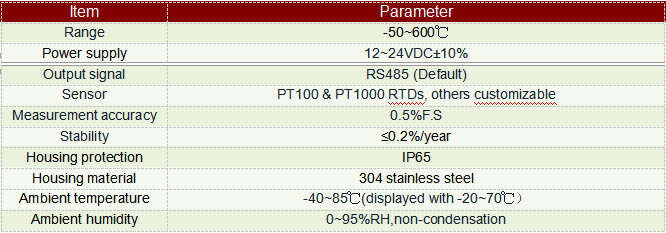

Performance Parameters

Power Supply: 12~24VDC

Ambient Temperature: 25℃

Note: For special requirement, please contact us.

Dimension

Note: For special requirement, please contact us.

Connection Definition and Output Option

Note: For special requirement, please contact us.

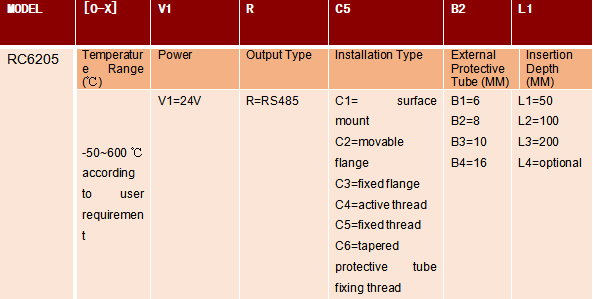

Ordering Information

The selection code of the example is as following:

Example: RC6205-[0-100]V1-R-C5-B2-L1 (RC6204 industrial temperature transmitter (2088 housing), range: 0-100℃, output: RS485, port: M20*1.5 end face, power supply: 24V, diameter of protective tube: 8mm, insertion depth: 50mm)

Note:

1. Please note that the tested medium shall be compatible with the part contacting the product and medium, while ordering.

2. For special requirements, please consult with our company and indicate in the order.
