Features

Wide temperature measurement range

Anti-vibration, anti-shock, corrosion resistance

Anti-interference design, suitable for harsh environment

High precision and stability

Reliable structure, good explosion-proof performance

Description

GWD200 intrinsic safe temperature sensor for mine is a high-performance and anti-interference sensor that can collect temperature. The product adopts an imported platinum resistance temperature sensor as a measuring element, and is newly developed to support multiple output.
This series of products are widely used in mines, and can be applied to the temperature detection of mine comprehensive detection systems and mining equipment machines. The product structure is made of stainless steel metal material, which is firm, reliable and suitable for various harsh environments.

Performance Specifications

Note: For special requirement, please feel free to contact us.

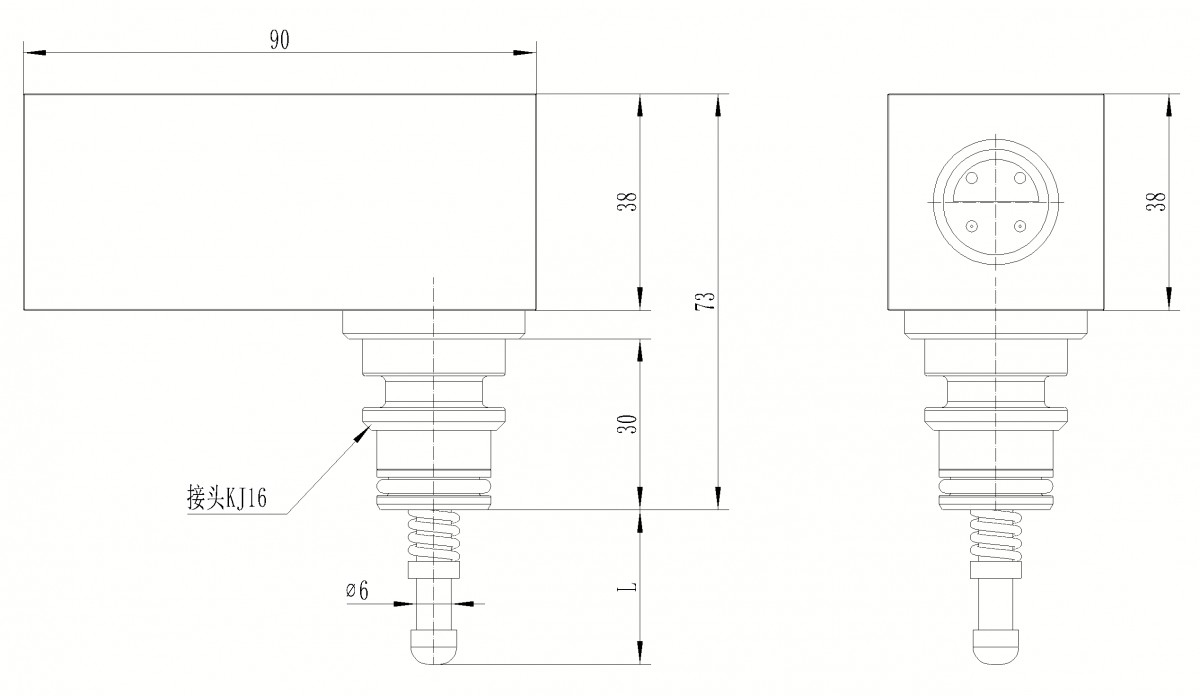

Dimensions

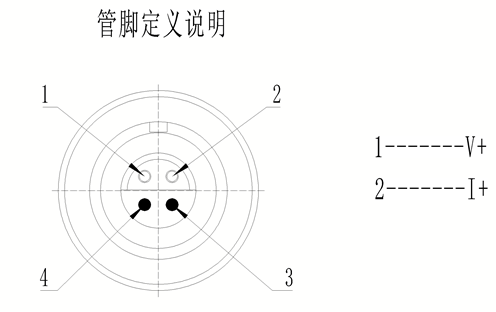

Connection Type and Output Option

Figure 1 (4~20mA output)

Note: For special requirement, please contact us.
1. Please note that the tested medium shall be compatible with the part contacting the product and the medium.
2. For special requirements, please consult with our company and indicate in the order.
